PC Polarized Lens Gradient Color Green Tinted
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Heritage Green Gradient Tint
The top-to-bottom green fade is built to the customer's zone targets across CAT 0–4 (final zone VLT/CAT confirmed at sampling), giving sunwear lines a classic outdoor color story with dual-zone light control.
Angler Glare Control
≥99% polarizing efficiency cuts surface reflections from rivers, lakes, and boat decks so anglers see more below the surface.
Featherweight PC for the Boat
0.00D plano optical-grade polycarbonate (Abbe 30, 1.20 g/cm³) keeps the lens light and impact-ready, supporting FDA drop-ball testing in production.
Green Fade Consistency
Instrument checks hold the green tones and lens pairing to the customer-agreed Delta E target (reference: < 1.0) from sample through reorder.
UV400 on the Water
Integrated absorbers block ≥99% of UVA and UVB up to 400 nm across the full gradient.

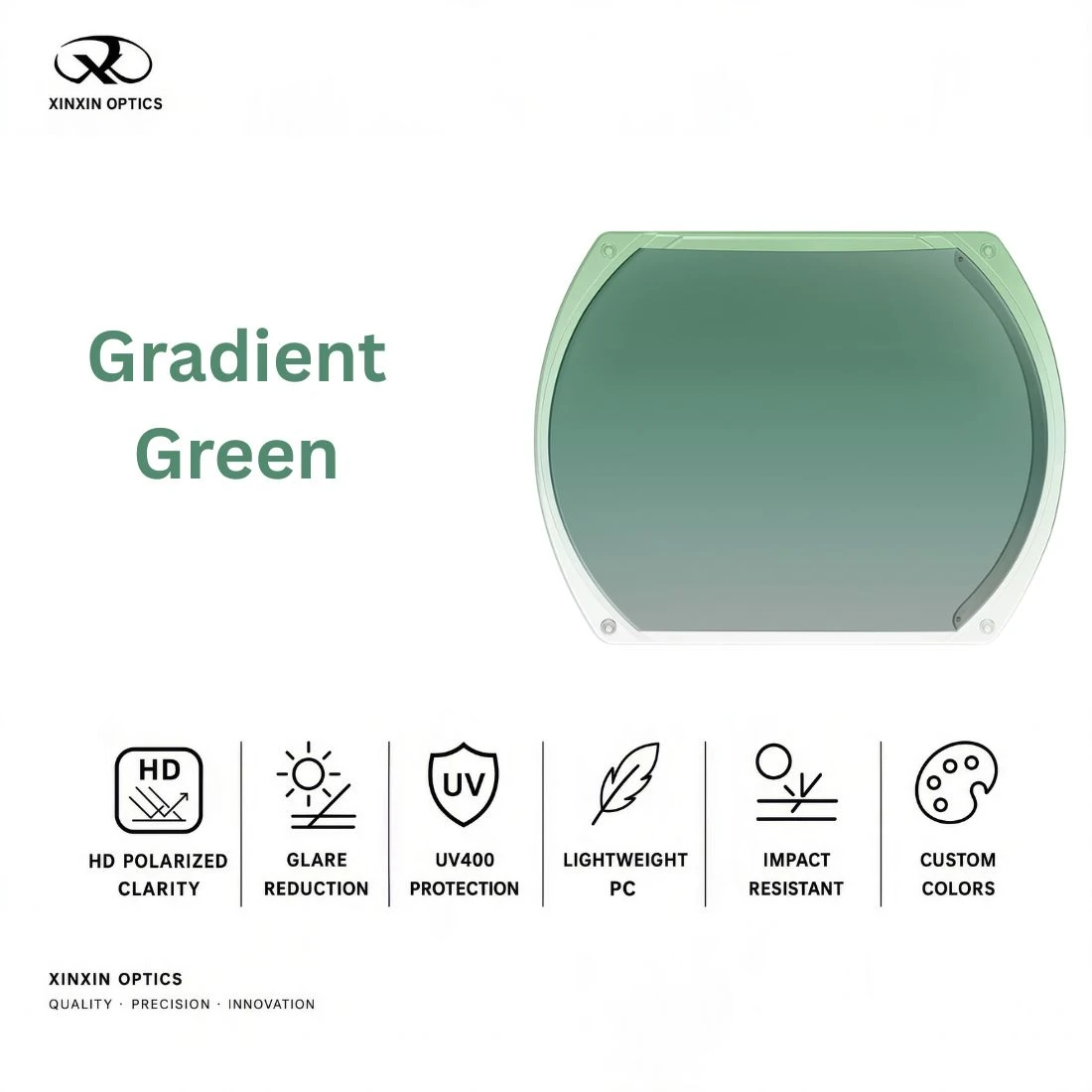

PC Polarized Lens Gradient Color Green Tinted

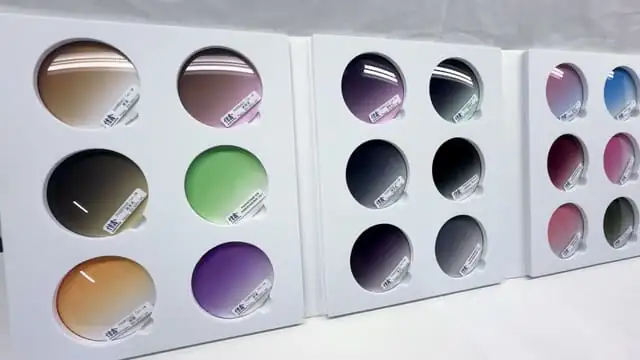

Click to view the PC polarized lens color series sample boards, where the green gradient tint direction appears within the full color range; final zone tones and VLT/CAT are confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Gradient Green |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | Dual-zone development across CAT 0–4 (3%–100% VLT; e.g. upper zone CAT 3 / lower zone CAT 2) — final zone VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended first choice. Have frame dimensions, the lens bevel profile, and glazing pressure checked against a sample to keep assembly from running overly tight.
- Other Full-Rim Frames in Scope — Also compatible with TR90 / Grilamid TR90 plus metal, titanium, stainless, and carbon fiber constructions; sample-verified glazing settings may be applied while eyewire closure tension stays controlled.
- Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Pantone-guided development for the green base tones and gradient transition approval, with repeat-order color matching
- Custom gradient zone ratio and zone transmission targets across CAT 0–4 (final zone VLT/CAT confirmed at sampling)
- Custom base curves, diameters, and B-AR (back-surface AR) coating for reduced rear-surface reflections in driving and outdoor use
- Coating upgrades: Hard Coat / Oleophobic / Hydrophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, Pantone tone matching, gradient zone ratios, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports
Features & Applications
Technical Features
- Green Tone Stability, Run After Run: Green is among the easiest tints to pull off target — toward blue in one batch, olive in the next — so every dye run is instrument-checked against the approved sample on a customer-agreed Delta E target (reference: < 1.0), holding replenishment orders to the signed tone without rematching delays.
- Defined Zone Geometry: The fade follows an approved gradient master, so the transition lands where your frame program expects it — upper CAT 3 filtering, lower CAT 2 clarity, final zone VLT/CAT confirmed at sampling — rather than drifting between production batches.
- Polarized Cut, Classic Identity: A ≥99%-efficiency polarizing film strips horizontal glare off roads, water, and glass, while the green tint gives a sunwear line the heritage sport identity that stands apart on a crowded sample board.
- Featherweight Impact Base: The optical-grade PC substrate (Abbe 30, 1.20 g/cm³) carries the plano optics in a light wearing package specified to support FDA 21 CFR 801.410 drop-ball testing, protecting your warranty budget against breakage claims.
- UV400 With Export Paperwork to Match: Integrated absorbers stop ≥99% of UVA and UVB through 400 nm, and CE / FDA / GB / ANSI / EN / AS/NZS documentation coverage keeps cross-border launches on schedule.
- Built Around Your Brief: Sports & Automotive Lifestyle Labels and Lens Distributors can configure 2C–8C base curves, 71–80mm diameters, gradient zone ratios, logo treatments, and B-AR or functional coatings from a 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Sports & Automotive Lifestyle Labels
- Water Sports & Marine Retailers
- Lens Distributors
Overview
Green is the quiet classic of the sunwear palette — a heritage outdoor tint that reads as performance, not fashion noise — and the gradient cut gives it two working zones of light.
Green dye is drift-prone, so every run is anchored to the approved master and the tint your customers meet at reorder is the one your designers chose. Zone ratios, tone targets, and finishing options are set in your brief, with Xinxin running the whole program in-house.
Lens Category
| Gradient Zone | VLT (%) | Category | Usage Environment |
|---|---|---|---|
| Upper zone (reference layout) | 8% - 18% | CAT 3 | Direct overhead sun, sky and road glare |
| Lower zone (reference layout) | 18% - 43% | CAT 2 | Dashboard, near-field view, eye contact |
Note: Zone targets are developed to the customer’s specification across CAT 0–4; the final zone VLT/CAT and transition placement are confirmed at sampling.
Precision Polarizer Lamination — How Xinxin Builds PC Polarized Lenses
Click to see how Xinxin laminates polarizing film, controls tint consistency, and verifies optical quality for PC polarized lens production.
International Quality Standards
Active certifications — verified & compliant
.webp)
