PC Polarized Lens Golden Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Impact-Ready PC Platform
The 0.00D plano lens is built on optical-grade polycarbonate (Abbe 30, 1.20 g/cm³), a featherlight, impact-ready base specified to support FDA 21 CFR 801.410 drop-ball testing in production programs.
Polarized Glare Control
A premium polarizing film laminated into the PC base delivers ≥99% efficiency against reflected glare from asphalt, water, hood metal, and glass facades, keeping forward vision clear for driving and outdoor wear.
True REVO Mirror Stack
A dense hard coat anchors the multi-layer vacuum-deposited golden REVO finish to the polycarbonate base, and cross-cut adhesion and coating-retention results are confirmed through testing arranged per the confirmed specification.
Managed Golden Consistency
Spectrophotometer checks hold the golden reflection to the customer-agreed Delta E target (reference: < 1.0) from the approved sample through every replenishment batch, keeping paired lenses and repeat orders visually aligned.
Surface Durability Program
Hydrophobic and anti-seawater surface upgrades are available, and boiling-saltwater, salt-spray, and environmental durability testing is arranged per the confirmed specification for marine and high-humidity programs.

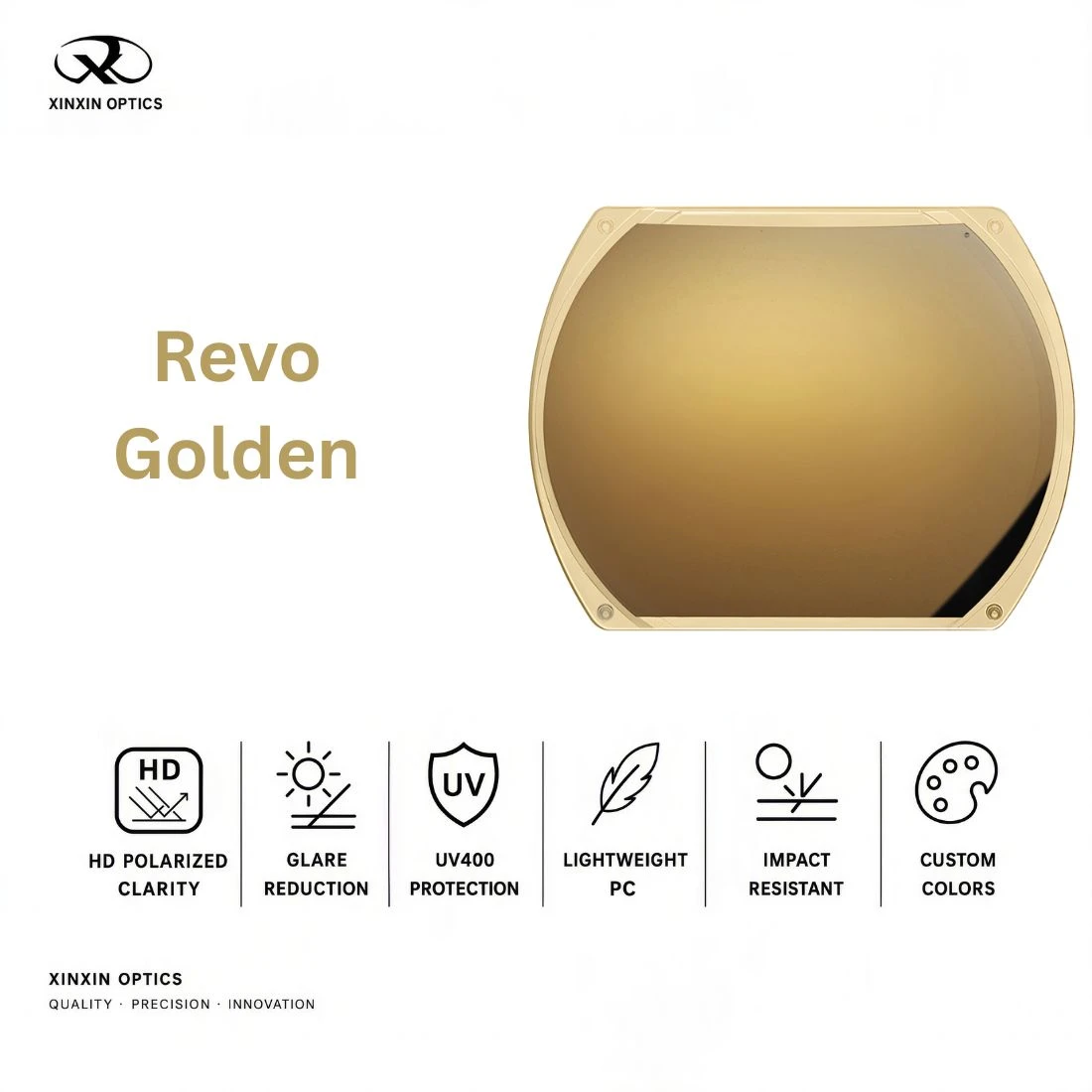

PC Polarized Lens Golden Mirror Coated
Click to play and see the golden REVO mirror finish on this PC polarized lens — a smoke-gray polarized base under a radiant golden reflective face; final VLT/CAT confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Smoke Gray Base + Golden Mirror Coated (REVO) |
| Coating Method | Multi-Layer Vacuum Deposition (layer stack confirmed at sampling) |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | 8-18% (CAT 3 reference); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 (test arranged per confirmed specification) |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification) |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended first choice. Have frame dimensions, the lens bevel profile, and glazing pressure checked against a sample so the mirror edge stays clean and assembly does not run overly tight.
- Other Full-Rim Frames in Scope — Also compatible with TR90 / Grilamid TR90 plus metal, titanium, stainless, and carbon fiber constructions; sample-verified glazing settings keep eyewire closure tension controlled.
- Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
- Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports
Features & Applications
Technical Features
- Radiant Golden Exterior: Multi-layer vacuum deposition produces a vibrant, high-saturation golden REVO reflection on the lens face, while the smoke-gray polarized core beneath preserves natural color rendition for driving and open-air activities.
- Precision Glare Attenuation: The laminated polarizing film eliminates ≥99% of blinding surface reflections from highways, water, hoods, and glass facades, ensuring sharp contrast and reduced eye strain across high-glare environments.
- Reinforced Hard-Coat Bonding: A cross-linked primer coat locks the dielectric golden mirror layers to the polycarbonate substrate; cross-cut adhesion and coating retention undergo testing arranged per the confirmed specification to resist delamination during bevel edging.
- Protective UV400 Matrix: Built-in ultraviolet absorbers within the optical-grade PC base (Abbe 30, 1.20 g/cm³) stop ≥99% of UVA and UVB radiation up to 400 nm, providing shatter-resistant protection that supports FDA 21 CFR 801.410 drop-ball compliance.
- Harsh-Environment Durability: Optional oleophobic, hydrophobic, and anti-seawater surface treatments prevent sweat, salt residue, and smudges from degrading optical clarity, backed by boiling-saltwater and salt-spray testing arranged per confirmed specification.
- Engineered Full-Rim Integration: Glazing is dedicated to full-rim frame styles—compatible with TR90, metal, titanium, stainless steel, and carbon fiber; acetate frames remain incompatible and rimless drill-mounting is prohibited. Lens Distributors and High-End Optical Chains can specify base curves (2C, 4C, 6C, 8C), diameters (71mm, 75mm, 80mm), B-AR back-surface coating, and CAT 0–4 VLT targets (final VLT/CAT confirmed at sampling) starting at 300 pairs.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Lens Distributors
- Sports & Automotive Lifestyle Labels
- High-End Optical Chains
Overview
Golden mirror finishes add an unmistakable warmth and prestige to active eyewear collections, making them a perennial centerpiece for driving, marine, and sunny lifestyle lines.
Consistent dielectric deposition holds the golden reflection true across replenishment orders, so the look approved in sampling remains uniform on the retail floor. Tailored base curves, back-surface anti-reflective coatings, and specialized packaging are configured in-house at Xinxin to match your collection brief.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Note: CAT 3 (8–18%) is the reference layout for this golden mirror; transmission targets across CAT 0–4 are developed to the customer’s specification and the final VLT/CAT is confirmed at sampling.
Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses

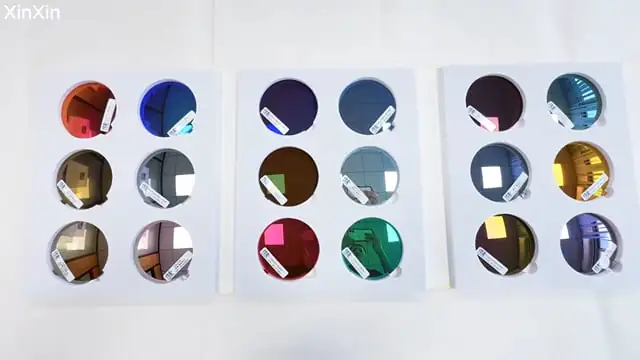

Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.
International Quality Standards
Active certifications — verified & compliant
