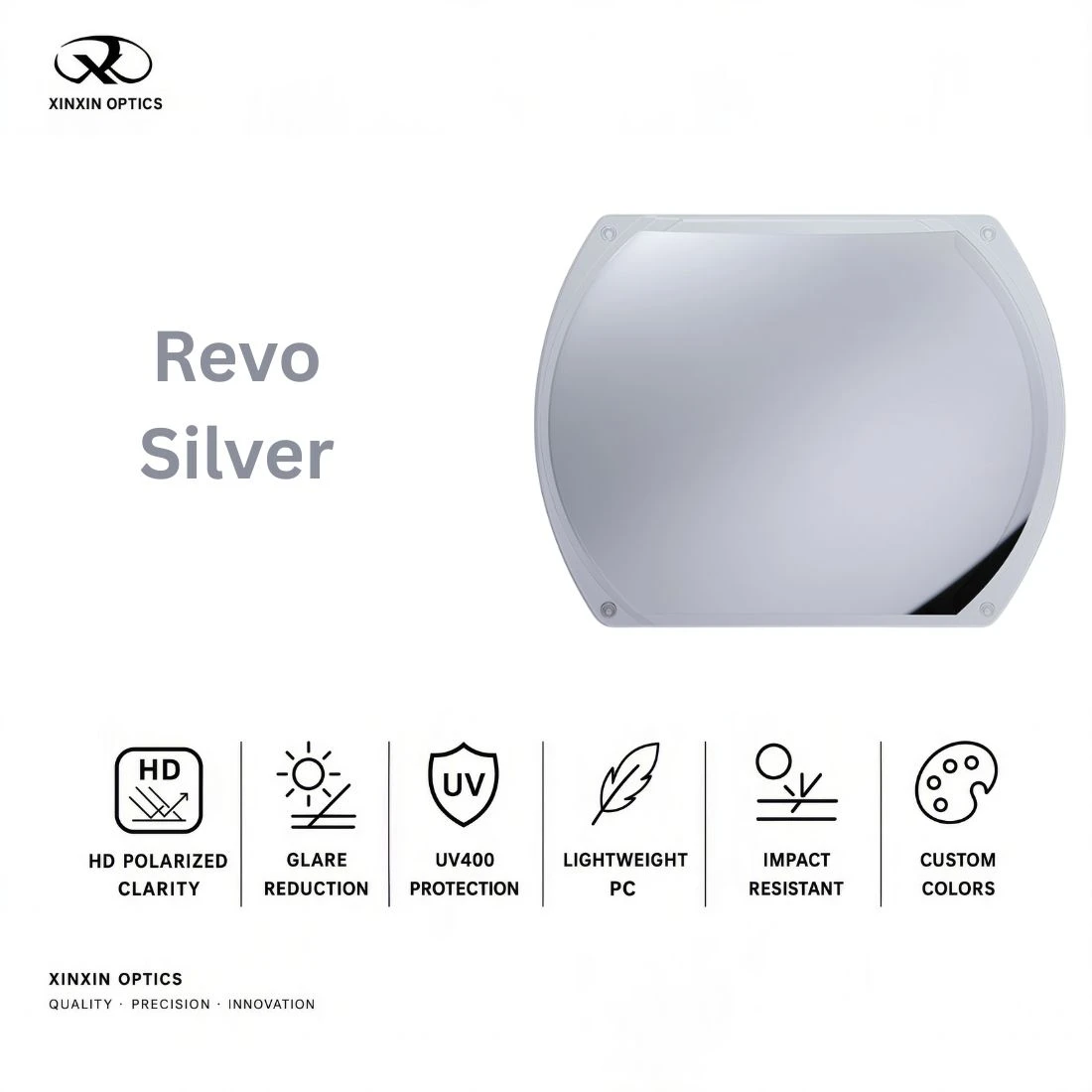

PC Polarized Lens Gray Silver Mirror Coated
Gray Silver Mirror Coated
Gray Silver Mirror Coated
Optical Grade PC, Premium Polarized Film
Mirror Coated
pc-polarized-mirror-lens
PC Polarized Lens Gray Silver Mirror Coated
pc polarized lens mirror color gray silver
Customizable
XinXin Optics Customization Lens Series

PC Polarized Lens Gray Silver Mirror Coated

Item No: Gray Silver Mirror Coated
Color Series: Mirror Coated
Materials: Optical Grade PC, Premium Polarized Film
Service Mode: OEM & ODM (Customization)
MOQ: 300 pairs per style per color
Key Features

Engineered Optical Excellence

Every lens inherits five core performance pillars — from optical purity to impact safety.

01

Beach-Glare Polarization

A laminated polarizing film reaches ≥99% efficiency against glare reflected off water and glass facades, for clearer seaside views.

02

Silver REVO on PC

A dense hard coat holds the multi-layer vacuum-deposited gray-silver mirror to the polycarbonate; cross-cut adhesion is confirmed by testing per the confirmed specification.

03

Flexible Shade Levels

8–18% VLT (CAT 3 reference), customizable across CAT 0–4, with final VLT/CAT confirmed at sampling.

04

Marine Upgrade Options

Hydrophobic and anti-seawater surface upgrades are available, with salt-spray and boiling-saltwater testing arranged per the confirmed specification.

05

Light, Impact-Ready Polycarbonate

0.00D plano PC (Abbe 30, 1.20 g/cm³) specified to support FDA 21 CFR 801.410 drop-ball testing, with color held to the customer-agreed Delta E target.

Real-World Lenses — From our Factory Floor

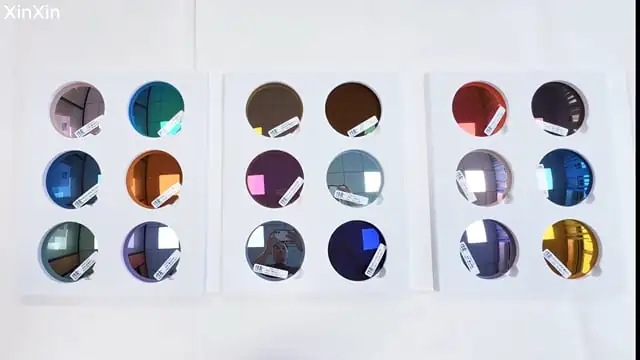

PC Polarized Lens Gray Silver Mirror Coated

Click to play and see the gray-silver REVO mirror finish on this PC polarized lens — a neutral smoke-gray base under a bright silver reflective face; final VLT/CAT confirmed at sampling.

Technical Data

Technical Specifications

Status Validated
Doc. Ref SPEC-GRAY SILVER MIRROR COATED-REV.A
Material Optical Grade PC + Premium Polarized Film
Color Smoke Gray Base + Gray Silver Mirror Coated (REVO)
Coating Method Multi-Layer Vacuum Deposition (layer stack confirmed at sampling)
Polarization Efficiency ≥ 99%
VLT / Category 8-18% (CAT 3 reference); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling
UV Protection UV400 (≤400nm, ≥99% blocking)
Abbe Value 30
Specific Gravity 1.20 g/cm³
Optical Accuracy Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D
Base Curve 2C / 4C / 6C / 8C Available
Center Thickness 1.5mm–2.0mm (±0.05mm)
Diameter 71mm / 75mm / 80mm (custom available)
Impact Test FDA 21 CFR 801.410 (test arranged per confirmed specification)
Certifications CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification)
MOQ 300 pairs per style per color
Origin Shenzhen, China
Logo Laser engraving, Screen printing, UV printing, Decal, Embedded logo
System Generated: 10/19/2026, 5:51:06 AM Secured by Xinxin Quality Control
Business & Compatibility

Production-Ready Integration

Everything you need to source with confidence

Frame Compatibility
  • PC Full-Rim Frames — Recommended first choice. Have frame dimensions, the lens bevel profile, and glazing pressure checked against a sample so the mirror edge stays clean and assembly does not run overly tight.
  • Other Full-Rim Frames in Scope — Also compatible with TR90 / Grilamid TR90 plus metal, titanium, stainless, and carbon fiber constructions; sample-verified glazing settings keep eyewire closure tension controlled.
  • Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
Customization Available
  • Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
  • Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
  • B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
  • Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
  • Simple, premium, blister, or branded-logo packaging and labeling options
B2B Terms
  • MOQ: 300 pairs per style per color
  • Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
  • Bulk Lead Time: 15–20 working days (subject to quantity)
  • Custom Base Curve / Color: 300 Pairs minimum
  • Deep Custom: 500 Pairs minimum
  • Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
  • Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports
Product Highlights

Features & Applications

Technical Features

  • Signature Silver Face: A multi-layer vacuum-deposited REVO stack gives the lens its metallic gray-silver exterior while the smoke-gray polarized base beneath keeps colors true — the pairing fashion and sport collections use to carry a technical look without shifting what the wearer sees.
  • Street-Ready Glare Control: Reflections off wet asphalt, glass facades, and vehicle panels are calmed by a ≥99% efficiency polarizing film, supporting clear forward vision for commuting, driving, and open-air programs.
  • Adhesion Verified to Spec: A dense hard coat anchors the mirror layer for edging and full-rim glazing, and cross-cut adhesion, salt-spray, and boiling-saltwater results are confirmed through testing arranged per the confirmed specification for coastal and high-humidity programs.
  • Batch-Matched Silver: Spectrophotometer checks hold the gray-silver reflection to the customer-agreed Delta E target (reference: < 1.0), so replenishment orders match the signed sample instead of drifting toward a cooler or warmer silver.
  • UV400 on an Impact Platform: Built-in absorbers stop ≥99% of UVA and UVB through 400 nm, riding on an optical-grade PC base (Abbe 30, 1.20 g/cm³) that supports FDA 21 CFR 801.410 drop-ball testing in production programs.
  • Specified Around Your Brief: E-commerce D2C Brands and Concept & Multi-Brand Stores can configure 2C–8C base curves, 71–80 mm diameters, B-AR and functional coatings, and transmission targets across CAT 0–4 (final VLT/CAT confirmed at sampling) from a 300-pair MOQ.

Perfect For

  • Premium Eyewear Brands
  • Independent Eyewear Designers
  • Private Label Distributors
  • Luxury Fashion Houses
  • E-commerce D2C Brands
  • Concept & Multi-Brand Stores

Overview

On a statement sun frame, the reflective silver face is what catches the shopper’s eye — and behind the mirror this lens still works as an everyday polarized sun lens, with a neutral smoke-gray view for driving and city glare.

Because each batch’s reflection density is checked against the agreed silver standard, the pair your designer signs off is the pair that ships at volume. Custom REVO shades, curves, and coating stacks are specified in one brief; Xinxin builds the whole program in-house.

Lens Category

Category VLT (%) Usage Environment
CAT 0 80% - 100% Indoor or overcast low-light conditions
CAT 1 43% - 80% Low-light outdoor, overcast
CAT 2 18% - 43% Medium light, daily outdoor
CAT 3 8% - 18% Strong outdoor light, sunny
CAT 4 3% - 8% Extreme light, e.g., skiing, mountaineering

Note: CAT 3 (8–18%) is the reference layout for this gray-silver mirror; transmission targets across CAT 0–4 are developed to the customer’s specification and the final VLT/CAT is confirmed at sampling.

Product Manufacturing in Action

Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses

Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.
