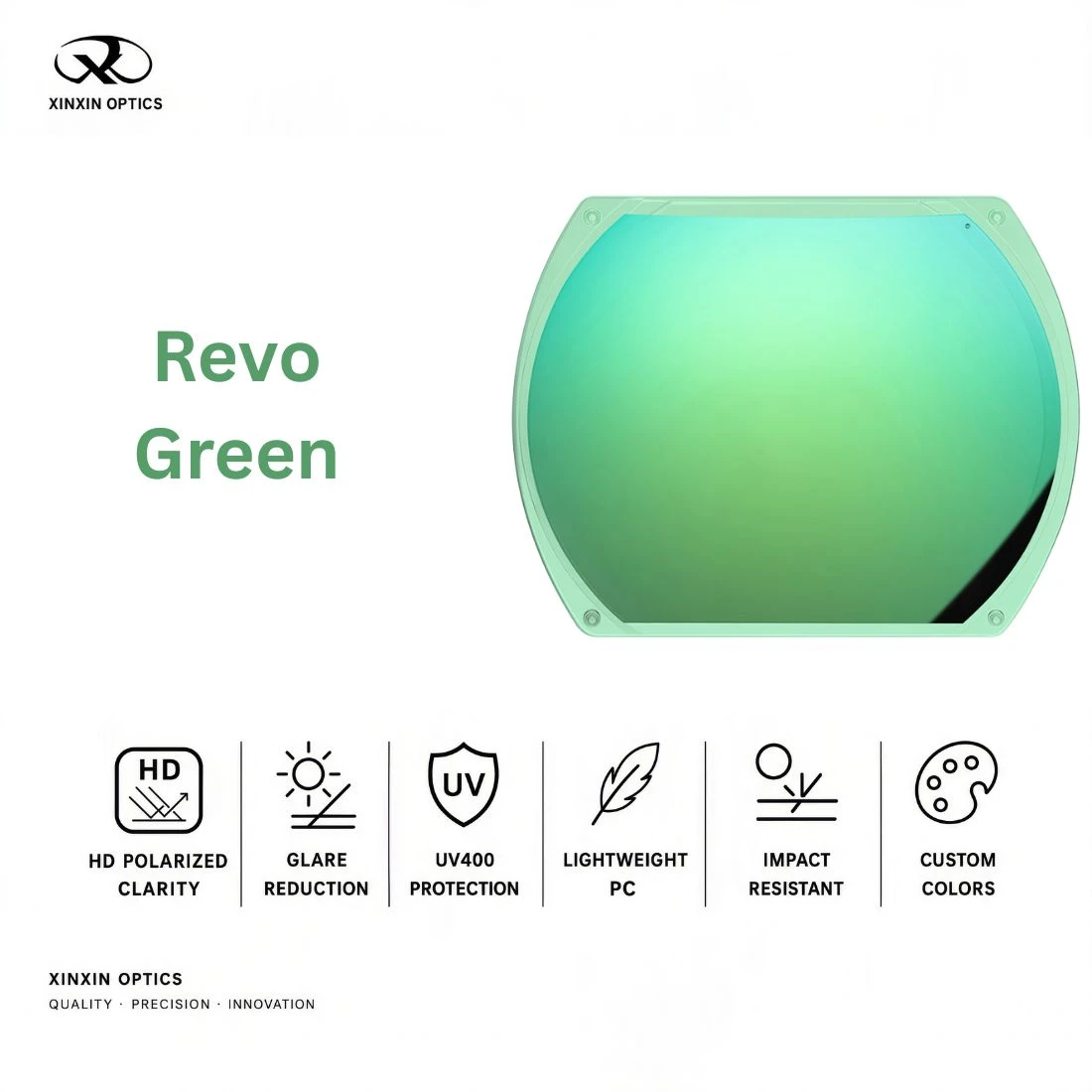

PC Polarized Lens Green Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Vibrant Green REVO Finish
Multi-layer vacuum dielectric deposition creates an energetic emerald green mirror face anchored to an optical PC core, delivering an eye-catching outdoor aesthetic.
Surface-Glare Polarization
An embedded polarizing filter delivers ≥99% polarization efficiency to cut blinding light from open water, wet turf, and shiny surfaces, paired with UV400 protection.
Impact-Resilient PC Core
Built on 0.00D plano polycarbonate (Abbe 30, specific gravity 1.20 g/cm³), this substrate is specified to support FDA 21 CFR 801.410 drop-ball impact testing.
Targeted Transmission Spectrum
Formulated with 8–18% VLT (CAT 3) as an illustrative reference, with full customization across CAT 0–4 and final VLT/CAT confirmed at sampling.
Repeat-Batch Color Fidelity
Spectrophotometer tracking holds the green mirror reflection within a customer-agreed Delta E target (reference < 1.0), with ASTM D3359 cross-cut adhesion testing arranged per confirmed specification.
PC Polarized Lens Green Mirror Coated

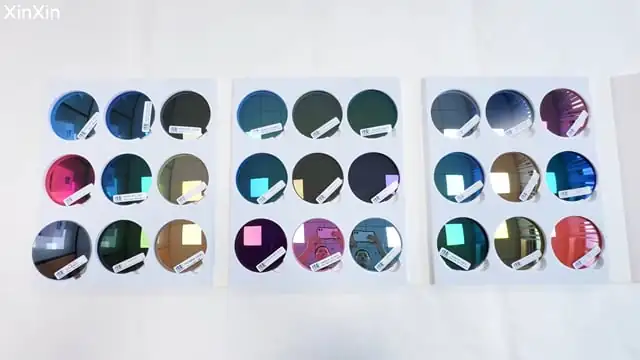

Click to play and see the emerald green REVO mirror finish on this PC polarized lens — a vibrant reflective face over a polarized PC base; final VLT/CAT confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Smoke Gray Base + Green Mirror Coated (REVO) |
| Coating Method | Multi-Layer Vacuum Deposition (layer stack confirmed at sampling) |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | 8-18% (CAT 3, illustrative reference only); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 (test arranged per confirmed specification) |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification) |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended first choice. Frame dimensions, bevel profile, and glazing pressure require sample verification; eyewire closure tension must be controlled.
- Other Full-Rim Frames in Scope — TR90 / Grilamid TR90, metal, titanium, stainless steel, and carbon fiber constructions are compatible; glazing settings require sample verification and controlled eyewire closure tension.
- Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
- Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports arranged per confirmed specification
Features & Applications
Technical Features
- Emerald REVO Mirror Face: Multi-layer vacuum deposition creates an emerald green reflective finish across the front curve, giving sport and lifestyle sun collections a vivid signature without compromising optical throughput.
- Polarized Glare Attenuation: The embedded polarizing film (≥99% polarization efficiency) cuts reflected specular glare off water surfaces, wet turf, and highway pavement, while UV400 filters block ≥99% of UVA and UVB up to 400 nm.
- Impact-Tolerant Plano Geometry: Built from 0.00D optical-grade polycarbonate (Abbe 30, specific gravity 1.20 g/cm³), the shatter-resistant core is specified to support FDA 21 CFR 801.410 drop-ball impact testing for sports eyewear compliance.
- Adhesion & Spectrophotometric QC: A primer hard coat anchors the multi-layer stack to prevent peeling during edging, backed by ASTM D3359 cross-cut testing and spectrophotometer inspections that maintain a customer-agreed Delta E target (reference: < 1.0).
- Full-Rim Assembly Program: Eyewire glazing requires sample verification and controlled closure pressure; TR90, metal, titanium, stainless steel, and carbon fiber frames are compatible; acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Flexible B2B Customization: Sports & Automotive Lifestyle Labels and High-End Optical Chains can order 2C, 4C, 6C, or 8C base curves with 71 mm, 75 mm, or 80 mm blanks from a 300-pair MOQ, with customizable transmission across CAT 0–4 and final VLT/CAT confirmed at sampling.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Sports & Automotive Lifestyle Labels
- High-End Optical Chains
- Water Sports & Marine Retailers
Overview
Green mirror finishes deliver a bold, nature-inspired visual identity for active sunwear lines. The polarized polycarbonate base pairs crisp glare reduction with light weight, giving outdoor brands a functional edge in variable sunlight.
Multi-layer REVO vacuum deposition keeps the emerald green tone stable across production runs, protecting your brand from the visual variance that creates customer returns. Custom mirror hues and transmission targets are developed in-house at Xinxin, turning your color brief into signed-off prototypes before bulk manufacturing starts.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Note: CAT 3 (8–18%) is an illustrative reference only, not a measured or confirmed value for this green mirror; transmission is customizable across CAT 0–4, with final VLT/CAT confirmed at sampling.
Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
Thank You!
Your inquiry has been sent successfully. We will contact you within 24 hours.
Or contact us directly:
Related Series
View All Collections
Dual Gradient Brown
Nylon Sunglasses Lens Dual Gradient Brown Tinted
Gradient Blue

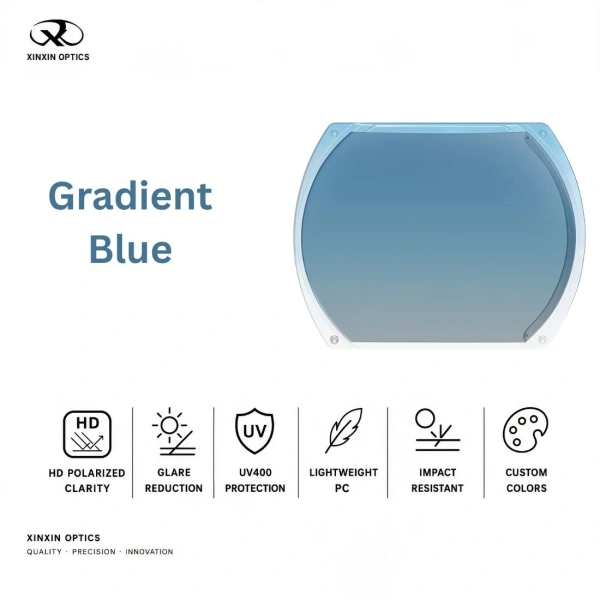

PC Polarized Lens Gradient Color Blue Tinted
