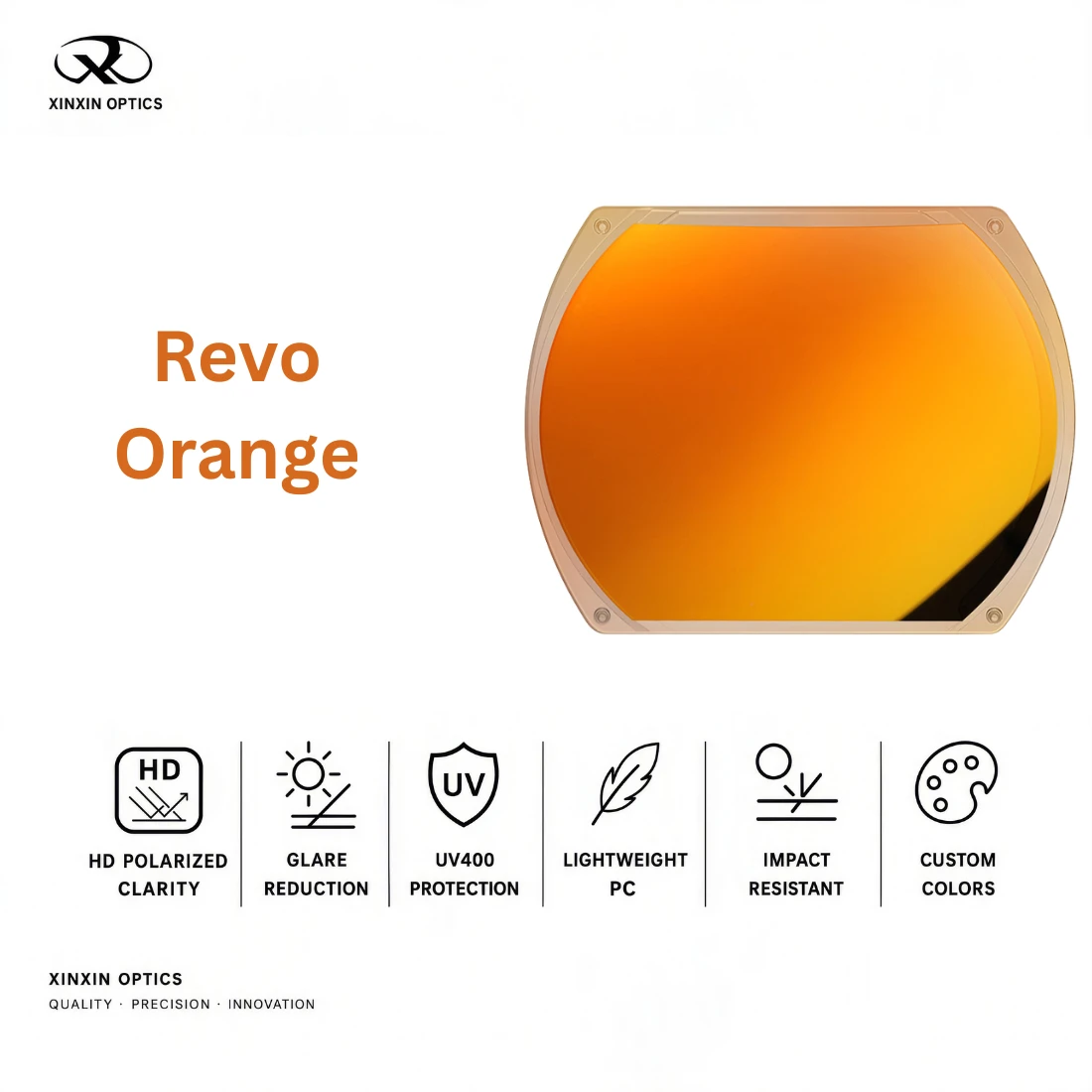

PC Polarized Lens Orange Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Statement Orange REVO
A hard-coat-anchored, multi-layer vacuum-deposited orange mirror gives polycarbonate sun lenses a warm, high-visibility face that separates a collection from neutral mirror finishes.
Illustrative Shade Reference
18–43% VLT (CAT 2) is shown only as an illustrative reference, not a measured or confirmed value; transmission is developed to your target across CAT 0–4, with final VLT/CAT confirmed at sampling.
Reflected-Glare Polarization
A laminated polarizing film with ≥99% polarization efficiency reduces glare reflected off open water, wet roads, and glass facades.
Impact-Ready Polycarbonate
The 0.00D plano PC lens (Abbe 30, 1.20 g/cm³) is specified to support FDA 21 CFR 801.410 drop-ball testing in production programs.
Orange Checked Across Reorders
Spectrophotometer checks compare each replenishment batch with the signed sample against a customer-agreed Delta E target (reference < 1.0).
PC Polarized Lens Orange Mirror Coated

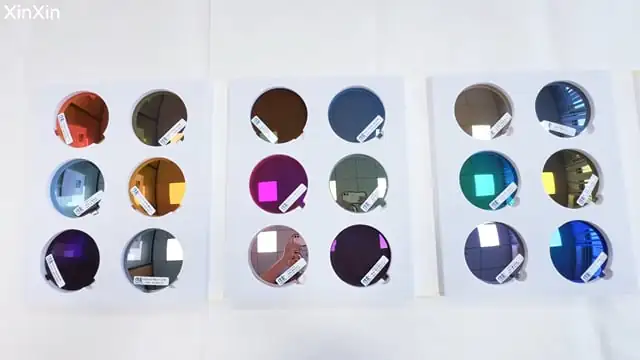

Click to play and see the orange REVO mirror finish on this PC polarized lens — a warm, high-visibility reflective face over a polarized PC base; final VLT/CAT confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Polarized PC Base + Orange Mirror Coated (REVO) |
| Coating Method | Multi-Layer Vacuum Deposition (layer stack confirmed at sampling) |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | 18-43% (CAT 2, illustrative reference only); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 (test arranged per confirmed specification) |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification) |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended first choice. Have frame dimensions, the lens bevel profile, and glazing pressure checked against a sample so the mirror edge stays clean and assembly does not run overly tight.
- Other Full-Rim Frames in Scope — Also compatible with TR90 / Grilamid TR90 plus metal, titanium, stainless, and carbon fiber constructions; sample-verified glazing settings keep eyewire closure tension controlled.
- Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
- Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports
Features & Applications
Technical Features
- Warm Orange Face: A multi-layer vacuum-deposited orange REVO stack gives the lens front a vivid, high-visibility reflection that reads clearly on a shelf or product page, so one mirror SKU can headline a sun collection without a second color story.
- Glare Control Under the Mirror: The polarizing film beneath the reflective face (≥99% polarization efficiency) reduces glare reflected from open water, wet tarmac, and glass, so the bold color is paired with polarized glare control rather than traded against it.
- Primer Hard Coat for the Mirror Layers: The orange stack is built on a primer hard coat intended to support the mirror layers through edging and frame glazing. ASTM D3359 cross-cut adhesion checks are arranged per the confirmed specification, and bevel and glazing settings are verified on a sample.
- Shade Set by Your Brief: Transmission targets are developed to your specification across CAT 0–4, and the final VLT/CAT is confirmed at sampling. The 18–43% (CAT 2) band is an illustrative reference only, not a measured or confirmed value for this lens.
- UV400 Protection: Absorbers in the optical-grade PC (Abbe 30, 1.20 g/cm³) block ≥99% of UVA and UVB up to 400 nm. FDA 21 CFR 801.410 drop-ball testing is arranged per the confirmed specification, which answers the safety questions buyers raise first.
- Full-Rim Frame Program: Glazing is full-rim only — TR90, metal, titanium, stainless, and carbon fiber constructions are compatible; acetate frames are incompatible; rimless drill-mounting is prohibited. Water Sports & Marine Retailers and Concept & Multi-Brand Stores can start from 300 pairs and choose 2C, 4C, 6C, or 8C base curves, 71 mm, 75 mm, or 80 mm diameters (other sizes on confirmation), and B-AR or hydrophobic coating upgrades.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Water Sports & Marine Retailers
- Concept & Multi-Brand Stores
- Corporate Promotional Suppliers
Overview
An orange mirror is the quickest way to give a polarized sun collection a warm, high-visibility face — one that reads from a shelf, a product page, or a dockside rack.
Small pilot runs let a new orange SKU prove itself before a full program is committed, and the approved sample becomes the reference for production. Xinxin develops the coating and your brief together in-house, so a color target moves to a prototype for your sign-off.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Note: CAT 2 (18–43%) is an illustrative reference for this orange mirror, not a measured or confirmed value; transmission targets across CAT 0–4 are developed to the customer’s specification and the final VLT/CAT is confirmed at sampling.
Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses

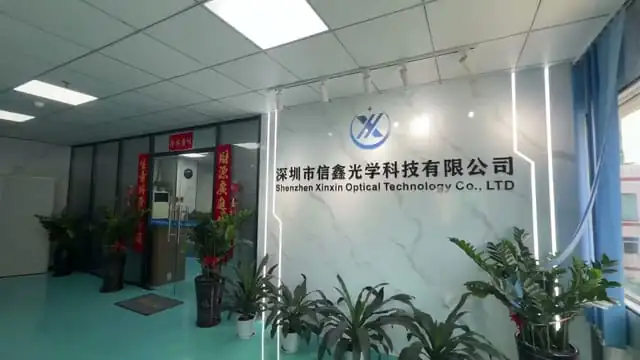

Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.
