PC Polarized Lens Solid Color Gray Tinted
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
True-Sight Gray Tint
A solid gray tint developed to the customer's target transmission category (CAT 0–4; final VLT/CAT confirmed at sampling) holds a neutral spectral balance so streetscapes, dashboards, and open terrain keep their natural color relationships across the day.
Everyday Glare Filter
The ≥99% efficient polarizer reduces reflected light from wet streets, car windows, and water for comfortable daily wear.
Lightweight Daily PC
A 0.00D optical-grade polycarbonate lens offers an impact-resistant, low-weight platform for all-day frames.
Neutral Gray, Verified
Spectrophotometer testing keeps the gray tint on the customer-agreed Delta E target (reference: < 1.0) through bulk production.
Daily UV400 Coverage
Blocks ≥99% of UVA and UVB up to 400 nm and meets FDA 21 CFR 801.410 impact requirements.

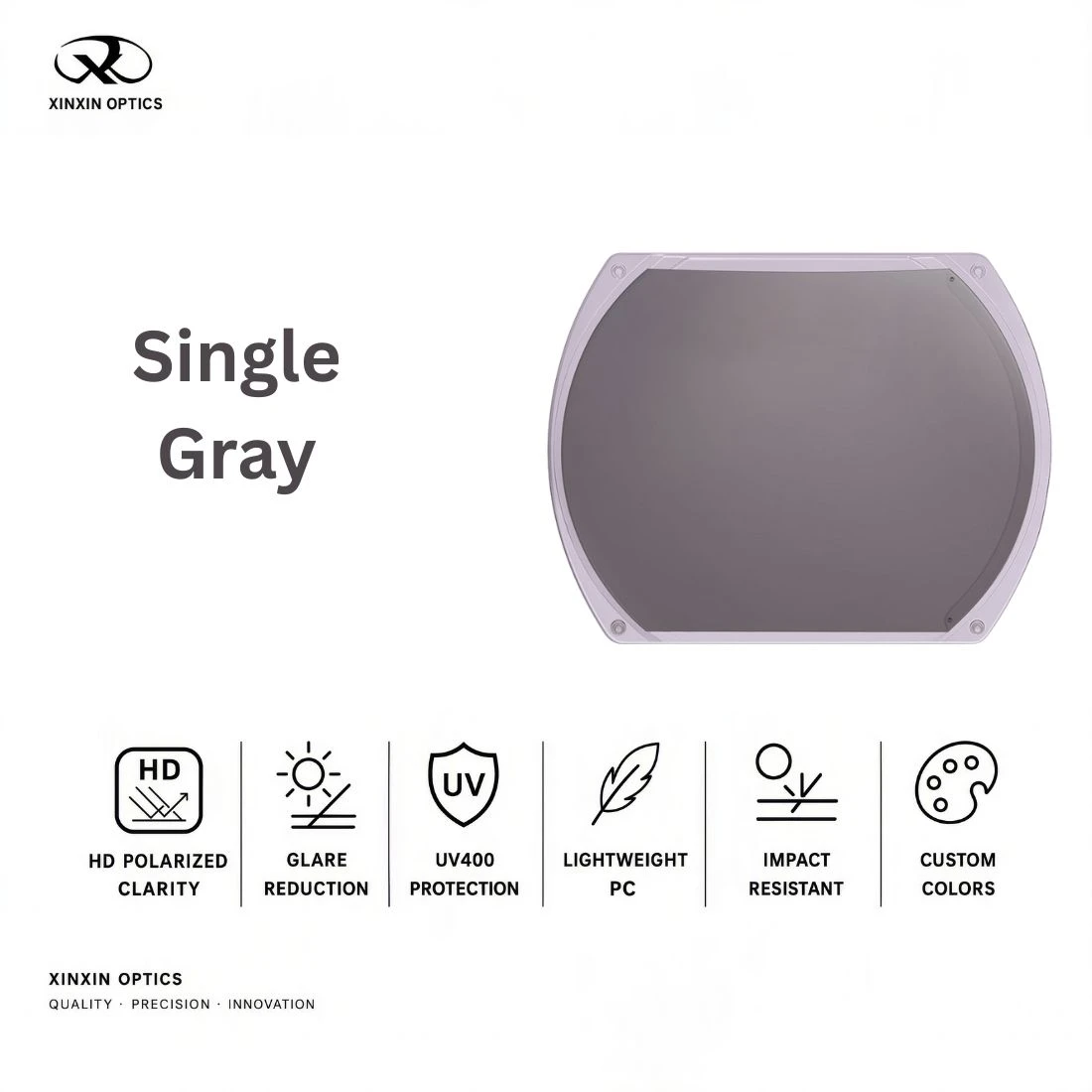

PC Polarized Lens Solid Color Gray Tinted

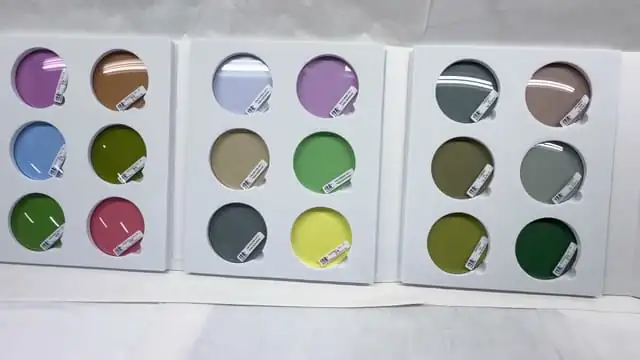

Click to view the PC polarized color-series boards in motion, where the gray tint direction appears within the full color range; the final tone and VLT/CAT are confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Gray |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | CAT 0–4 (3%–100% VLT) — tinted to the customer's target category; final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended match. Frame dimensions, the bevel profile of the lens, and glazing pressure need sample confirmation before glazing, so assembly does not end up overly tight.
- Other Full-Rim Options — Metal, titanium, stainless, carbon fiber, and TR90 / Grilamid TR90 full-rim frames are compatible as well; run a sample-verified glazing setup and keep the eyewire closure tension controlled.
- Assembly Restrictions — Full-rim assembly only. Not compatible with Acetate; rimless drill-mount assembly is strictly prohibited.
- Pantone-guided development for gray base-tone approval and repeat-order color matching
- Custom base curves, diameters, and transmission targets across CAT 0–4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating for reduced rear-surface reflections in sport and outdoor use
- Coating upgrades: Hard Coat / Oleophobic / Hydrophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, Pantone tone matching, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, and Polarization Efficiency reports
Features & Applications
Technical Features
- True-Color Neutrality: A solid gray dye with a level spectral curve keeps asphalt, foliage, and vehicle finishes reading in their natural hues — the reason gray anchors everyday sun collections without clashing across a frame range.
- Daylight Density on Request: The gray dye spans the whole CAT 0–4 window (3%–100% VLT), so the shading depth for a morning commute or late-afternoon glare follows whatever category the customer fixes at sampling.
- Glare Control at Street Level: Reflected light from wet roads, glass facades, and car hoods meets a ≥99% efficiency polarizing film, so wearers hold clear sightlines through the brightest part of the day.
- Neutral-Batch Consistency: Spectrophotometer audits hold each gray batch to the Delta E target agreed with the customer (reference: < 1.0), which limits drift toward a blue cast and keeps replenishment orders matched to the approved sample.
- Certified UV & Impact Defense: UV400 absorbers maintain ≥99% UVA/UVB blockage through 400 nm, and the FDA 21 CFR 801.410 drop-ball pass plus CE / ANSI / EN records clear export inspection without repeat testing delays.
- Spec-Driven Programs: Lens Distributors and Department Store Groups can configure 2C–8C base curves, 71–80mm diameters, laser logos, and B-AR coatings from a 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Lens Distributors
- Department Store Groups
- Concept & Multi-Brand Stores
Overview
Every collection needs one colorway that pairs with the rest of the line, and in sunwear that role belongs to gray. Statement tints follow a season; a solid gray polarized lens carries a program across commute, travel, and general sun lines through every season.
True-color transmission is the selling point your retail team can demonstrate in one sentence: scenery keeps its natural hues while reflected glare drops. Xinxin develops the approved gray tone and coating stack in-house, so the sample your team signs off is the shade that ships at volume.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Precision Polarizer Lamination — How Xinxin Builds PC Polarized Lenses
Click to see how Xinxin laminates polarizing film, controls tint consistency, and verifies optical quality for PC polarized lens production.
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
Thank You!
Your inquiry has been sent successfully. We will contact you within 24 hours.
Or contact us directly:
Related Series
View All Collections
Gradient Brown
Nylon Sunglasses Lens Gradient Color Brown Tinted
Polarized Solid Purple

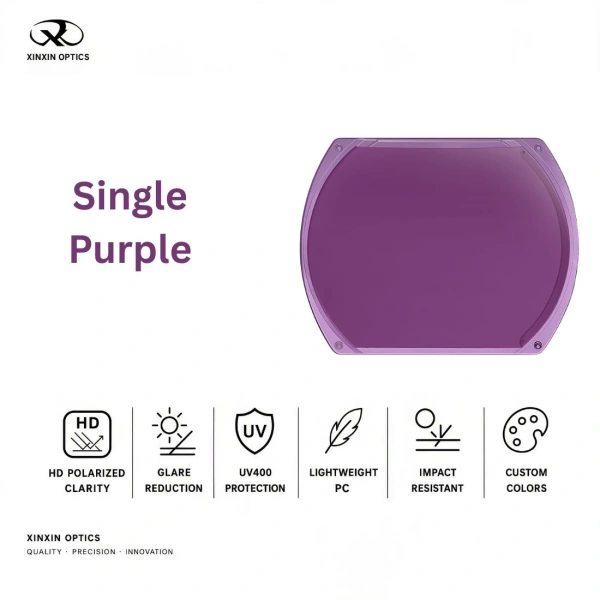

PC Polarized Lens Solid Color Purple Tinted
