Nylon Polarized Lens Gradient Color Green Tinted
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses with an Abbe Value of 52, rivaling crown glass for ultimate optical purity. Thoroughly eliminates the "rainbow effect" and edge color dispersion typically associated with high-base polarized lenses.
Molecular-Level Polarization
Integrates premium Japan-imported PVA polarized film with the nylon base at a molecular level, ensuring absolutely no delamination even under intense CNC rimless drilling. Delivers a polarization efficiency of ≥99% to cut off severe glare.
Seamless Dual-Zone VLT
High-Temp Precision Dip-Dyeing achieves a flawless transition from Top CAT 3 (8-18% VLT) to Bottom CAT 2 (18-43% VLT). Strictly controlled batch symmetry with Delta E < 1.0 and zero visible color banding.
Precision Alignment Marks
To solve the industry pain point of tilted gradient lines during CNC edging, all gradient blanks feature high-precision, washable eco-ink horizontal axis lines. This completely eliminates alignment defects and maximizes your rimless assembly yield rate.
UV400 & FDA Impact Safety
Offers uncompromised 100% blockage of UVA and UVB rays (≤400nm, ≥99% blocking) consistently across both zones. The ultra-thin 1.5mm profile easily passes the FDA 21 CFR 801.410 drop-ball test.
Nylon Polarized Lens Gradient Color Green Tinted
Click to play and see the optical performance and real-world clarity of our green gradient polarized nylon sunglass lenses — showcasing the seamless CAT 3-to-CAT 2 tint transition and glare-cutting polarization.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Couture Gradient Green (Pantone matching available) |
| VLT / Category | Top: 8-18% (CAT 3) / Bottom: 18-43% (CAT 2) |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Plano 0.00D; Residual Astigmatism ≤0.09D; Residual Prism ≤0.12Δ, measured at the optical reference point. |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / UKCA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving (recommended for gradient lenses), Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly recommended. Excellent chemical resistance against acetate plasticizers. Completely immune to stress cracking caused by Acetate's cooling shrinkage during fitting.
- Rimless / Drill-mount — Supreme tensile strength ensures zero edge chipping during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Pantone matching for precise gradient base colors and bi-color transitions (e.g., Sunset Gradient)
- Custom gradient zone ratio — dark zone depth adjustable (e.g., top 40% / bottom 60% of lens height)
- B-AR (Back-Surface AR) coating recommended to eliminate rear reflections
- Coating upgrades: HC / Oleophobic / Hydrophobic / Anti-fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Sample Lead Time: 7–10 working days, allowing you to verify gradient quality before bulk order
- Bulk Lead Time: 15–20 working days (subject to quantity and customization complexity)
- Custom Options: Pantone color matching, custom VLT zone ratio, dark-zone depth control, bi-color gradient transitions, B-AR coating
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report, Polarization Efficiency Test Report
Features & Applications
Technical Features
- Optical Purity: An Abbe Value of 52 closely matches crown glass. This high optical purity prevents the visual distortion that typically drives customer complaints, keeping your premium eyewear collections highly regarded.
- Advanced Polarization: Premium PVA polarized film is integrated at a molecular level. This robust construction completely prevents delamination during complex rimless frame assembly, while the ≥99% polarization efficiency secures a distinct competitive advantage for your sunglass lines.
- Precision Tint Control: High-Temp Precision Dip-Dyeing achieves a flawless gradient transition from CAT 3 to CAT 2. Strict Delta E < 1.0 batch symmetry completely eliminates rejected shipments caused by visible color banding.
- Regulatory Compliance: Uncompromised UV400 protection fully shields your business from liability risks. Furthermore, a guaranteed pass on the FDA 21 CFR 801.410 drop-ball impact safety test completely removes regulatory roadblocks for global export operations.
- Assembly Efficiency: Edge-chipping during CNC drilling is virtually eliminated due to the highly stable 1.01 g/cm³ specific gravity. Washable eco-ink horizontal axis marks on all gradient blanks solve alignment defects and maximize the rimless assembly yield rate.
- B2B Customization: Independent Eyewear Designers can prototype new lines with minimal financial risk. Custom diameters, tailored base curves, and precise Pantone color matching are available starting at a low 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Luxury Fashion Houses
- Sports & Automotive Lifestyle Labels
- Concept & Multi-Brand Stores
Dual-Zone VLT Reference
| Gradient Zone | VLT (%) | Category | Usage Environment |
|---|---|---|---|
| Top (Dark Zone) | 8% - 18% | CAT 3 | Direct sunlight, outdoor glare blocking |
| Bottom (Light Zone) | 18% - 43% | CAT 2 | Near-field clarity, reading, driving view |
Note: The gradient transition is continuous with zero visible banding. Delta E < 1.0 batch-to-batch consistency is enforced at the factory level.
Overview
A flagship polarized line requires a visual profile that balances sophisticated aesthetics with essential glare control. The gradient construction provides a continuous transition for near-field viewing, while the advanced polarization cuts blinding surface reflections during outdoor wear.
Precision tint control yields consistent color transitions, preventing the QA failures that often derail mass assembly. Paired with tailored customization for specific shade matching, your original design carries cleanly from concept to finished product. Xinxin builds the complete lens in-house, ensuring every prototype perfectly mirrors the final bulk run.
Precision Dip-Dye Manufacturing — How Xinxin Crafts Gradient Polarized Nylon Sunglass Lenses in Shenzhen

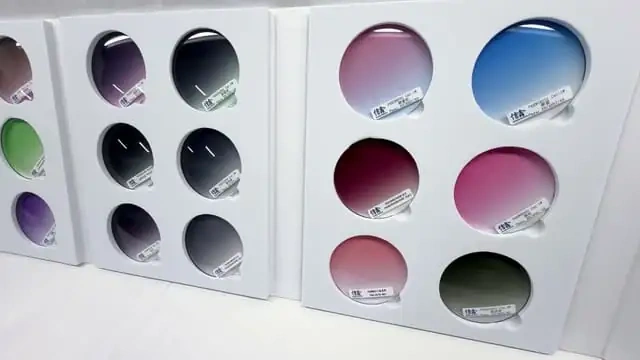

Click to play and see how our green gradient polarized nylon lenses are precision dip-dyed and quality-controlled — from blank forming through dual-zone tint verification.
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
Thank You!
Your inquiry has been sent successfully. We will contact you within 24 hours.
Or contact us directly:
