Nylon Polarized Lens Gradient Color Purple Tinted
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses with an Abbe Value of 52, rivaling crown glass for ultimate optical purity. Thoroughly eliminates the "rainbow effect" and edge color dispersion typically associated with high-base polarized lenses.
Molecular-Level Polarization
Integrates premium Japan-imported PVA polarized film with the nylon base at a molecular level, ensuring absolutely no delamination even under intense CNC rimless drilling. Delivers a polarization efficiency of ≥99% to cut off severe glare.
Seamless Dual-Zone VLT
High-Temp Precision Dip-Dyeing achieves a flawless transition from Top CAT 3 (8-18% VLT) to Bottom CAT 2 (18-43% VLT). Strictly controlled batch symmetry with Delta E < 1.0 and zero visible color banding.
Precision Alignment Marks
To solve the industry pain point of tilted gradient lines during CNC edging, all gradient blanks feature high-precision, washable eco-ink horizontal axis lines. This completely eliminates alignment defects and maximizes your rimless assembly yield rate.
UV400 & FDA Impact Safety
Offers uncompromised 100% blockage of UVA and UVB rays (≤400nm, ≥99% blocking) consistently across both zones. The ultra-thin 1.5mm profile easily passes the FDA 21 CFR 801.410 drop-ball test.
Nylon Polarized Lens Gradient Color Purple Tinted

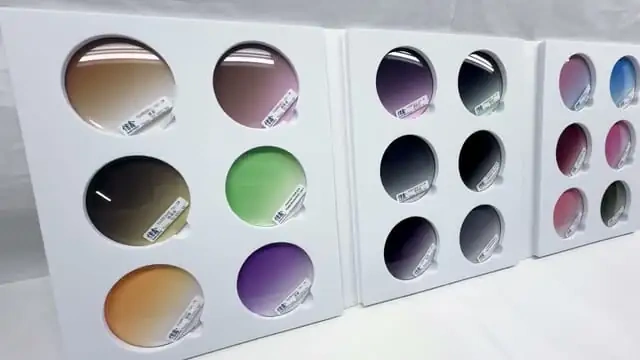

Click to play and see the optical performance and real-world clarity of our purple gradient polarized nylon sunglass lenses — showcasing the seamless CAT 3-to-CAT 2 tint transition and glare-cutting polarization.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Couture Gradient Purple (Pantone matching available) |
| VLT / Category | Top: 8-18% (CAT 3) / Bottom: 18-43% (CAT 2) |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Plano 0.00D; Residual Astigmatism ≤0.09D; Residual Prism ≤0.12Δ, measured at the optical reference point. |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / UKCA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving (recommended for gradient lenses), Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly recommended. Excellent chemical resistance against acetate plasticizers. Completely immune to stress cracking caused by Acetate's cooling shrinkage during fitting.
- Rimless / Drill-mount — Supreme tensile strength ensures zero edge chipping during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Pantone matching for precise gradient base colors and bi-color transitions (e.g., Sunset Gradient)
- Custom gradient zone ratio — dark zone depth adjustable (e.g., top 40% / bottom 60% of lens height)
- B-AR (Back-Surface AR) coating recommended to eliminate rear reflections
- Coating upgrades: HC / Oleophobic / Hydrophobic / Anti-fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Sample Lead Time: 7–10 working days, allowing you to verify gradient quality before bulk order
- Bulk Lead Time: 15–20 working days (subject to quantity and customization complexity)
- Custom Options: Pantone color matching, custom VLT zone ratio, dark-zone depth control, bi-color gradient transitions, B-AR coating
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report, Polarization Efficiency Test Report
Features & Applications
Technical Features
- Optical Purity: An exceptional Abbe Value of 52 closely matches crown glass, offering the precise visual clarity your high-end customers demand. This premium nylon material prevents color dispersion and optical distortion at the lens edges.
- High-Efficiency Polarization: Integrated Japan-imported PVA film delivers a polarization efficiency of ≥99% to completely cut off blinding surface glare. This robust performance upgrade provides a critical selling point for outdoor and driving collections.
- Dual-Zone Light Attenuation: A flawless fade from a CAT 3 top to a CAT 2 bottom provides reliable overhead sun protection while maintaining near-field visibility. Strict Delta E < 1.0 batch symmetry completely eliminates rejected shipments caused by inconsistent purple gradients.
- Complete Eye Defense: Full UV400 compliance blocks 100% of harmful UVA and UVB radiation. Guaranteeing these safety certifications shields your brand from regulatory delays during global export operations.
- Assembly Efficiency: The ultra-lightweight 1.01 g/cm³ specific gravity provides high mechanical strength to prevent edge-chipping during CNC drilling. This durability significantly reduces material waste and lowers your overall production costs.
- Mechanical Safety & Scalability: Robust FDA 21 CFR 801.410 drop-ball compliance minimizes warranty claims for Premium Eyewear Brands. Custom diameters, bespoke base curves, and precise Pantone color matching are easily accessible starting at a flexible 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Luxury Fashion Houses
- E-commerce D2C Brands
- Concept & Multi-Brand Stores
Dual-Zone VLT Reference
| Gradient Zone | VLT (%) | Category | Usage Environment |
|---|---|---|---|
| Top (Dark Zone) | 8% - 18% | CAT 3 | Direct sunlight, outdoor glare blocking |
| Bottom (Light Zone) | 18% - 43% | CAT 2 | Near-field clarity, reading, driving view |
Note: The gradient transition is continuous with zero visible banding. Delta E < 1.0 batch-to-batch consistency is enforced at the factory level.
Overview
Outdoor and driving collections demand a tinted lens that pairs continuous top-to-bottom shading with reliable glare reduction. High-end fashion programs require smooth color transitions that never compromise on visual clarity.
Advanced polarization combined with strict impact safety delivers the performance and regulatory compliance your retail line demands—your brand ships globally without rework. A custom Pantone target and tailored coating stack can be mapped directly to your design brief—Xinxin builds the complete customization flow in-house, so the signed-off prototype matches your production run.
Precision Dip-Dye Manufacturing — How Xinxin Crafts Gradient Polarized Nylon Sunglass Lenses in Shenzhen
Click to play and see how our purple gradient polarized nylon lenses are precision dip-dyed and quality-controlled — from blank forming through dual-zone tint verification.
