Nylon Polarized Lens Blue Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses with an Abbe Value of 52. Thoroughly eliminates the "rainbow effect" and edge color dispersion typically associated with high-base polarized lenses.
Molecular-Level Polarization
Integrates premium Japan-imported PVA polarized film with the nylon base at a molecular level. Delivers a polarization efficiency of ≥99% to efficiently cut off severe glare from water and snow.
Premium Hard-Coating & True REVO
A high-density hard-coating securely anchors the 12-14 layer nano-scale ion sputtering blue REVO layers to the flexible nylon base. Achieves Grade 0 cross-cut adhesion, completely preventing cracking or peeling under extreme rimless frame-fitting tension.
Strict Color Consistency
Automated spectrophotometer monitoring ensures absolute batch-to-batch consistency for the blue mirror finish with a strictly controlled Delta E < 1.2, eliminating visual discrepancies in bulk orders.
Extreme Environment Durability
Standard super hydrophobic outer layer (water contact angle > 110°) effortlessly repels water. Passes the rigorous 2-hour boiling saltwater test and 96-hour salt spray test with zero delamination, ensuring peak performance in marine environments.
Nylon Polarized Lens Blue Mirror Coated

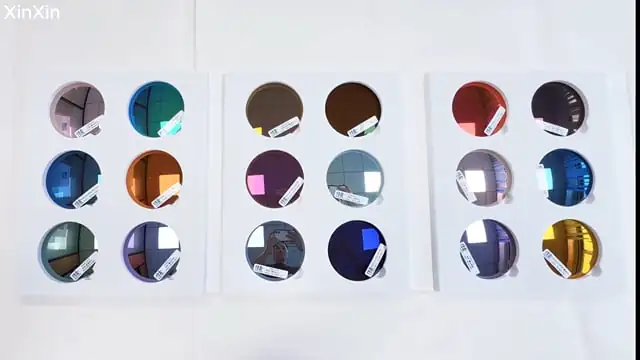

Click to play and see the real-world performance of our blue polarized mirror nylon lens — showcasing the high-saturation blue REVO finish and pure optical clarity.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Couture Dark Gray Base + Blue Mirror Coated (REVO) |
| Coating Method | 12-14 Layer Vacuum Ion Sputtering |
| VLT / Category | 8-18% / CAT 0, 1, 2, 3, 4 |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Prism ≤0.12 Δ / Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly Recommended. Excellent chemical resistance against acetate plasticizers. Completely immune to stress cracking caused by acetate's cooling shrinkage during fitting. The blue REVO coating remains firmly anchored under high rim tension.
- Rimless / Drill-mount — Supreme tensile strength ensures zero edge chipping or delamination during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Eco-friendly upgrade to Bio-based Nylon (castor oil derived) available for luxury ESG compliance
- Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
- B-AR (Back-Surface AR) coating strictly recommended to eliminate rear ghost reflections
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static / Anti-fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Sample Lead Time: 7–10 working days
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Options: OEM/ODM, Bio-based Nylon option (ESG compliance), custom REVO colors
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report, Polarization Efficiency Test Report
Features & Applications
Technical Features
- Optical Purity: Achieving an Abbe Value of 52, this premium nylon base rivals crown glass for clarity. Such high optical precision completely eliminates the visual distortion that typically drives customer complaints.
- High-Efficiency Polarization & REVO: Precision-aligned Japan-imported PVA film blocks 99% of blinding surface glare while the 12-14 layer blue mirror coating delivers exceptional heat rejection. This combination provides Water Sports & Marine Retailers with a distinct competitive advantage for outdoor frames.
- Strict Color Consistency: Avoid costly supply chain delays caused by mismatched lenses during factory assembly. Automated spectrophotometer monitoring ensures absolute batch-to-batch matching (Delta E < 1.2) for the high-saturation blue mirror finish.
- Comprehensive UV Defense: This total blockage of UVA and UVB radiation (≤400nm) guarantees full compliance with global health standards. It secures your premium brand against unexpected regulatory roadblocks and liability risks.
- Mechanical Safety & Coating Adhesion: Post-sale warranty claims are drastically minimized for your high-end collections. Robust FDA drop-ball impact resistance and Grade 0 cross-cut adhesion ensure the mirror coating remains firmly anchored even under extreme rim tension.
- Scalable Manufacturing: Independent Eyewear Designers can efficiently prototype new collections with minimal financial risk. Custom base curves (2C–8C), variable diameters up to 80mm, and tailored Pantone base matching are fully accessible starting at a low 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Water Sports & Marine Retailers
- High-End Optical Chains
- E-commerce D2C Brands
Overview
Active lifestyle collections require a polarized lens that pairs high-performance glare reduction with a bold, distinctive aesthetic. The mirror finish delivers immediate shelf appeal while the underlying optical construction provides the true-color visibility essential for outdoor environments.
Precision-aligned polarizers cut blinding reflections, ensuring your end-product delivers the visual comfort high-end buyers expect. Custom tint profiling and tailored coating stacks can be specified in your brief—Xinxin manages the entire finishing process in-house, so the prototype matches the production run.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
12-14 Layer Ion-Assisted E-Beam Evaporation (PVD) — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how our blue polarized mirror nylon lens is manufactured using nano-scale Ion-Assisted E-Beam Evaporation in a Class 10,000 cleanroom.
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
Thank You!
Your inquiry has been sent successfully. We will contact you within 24 hours.
Or contact us directly:
