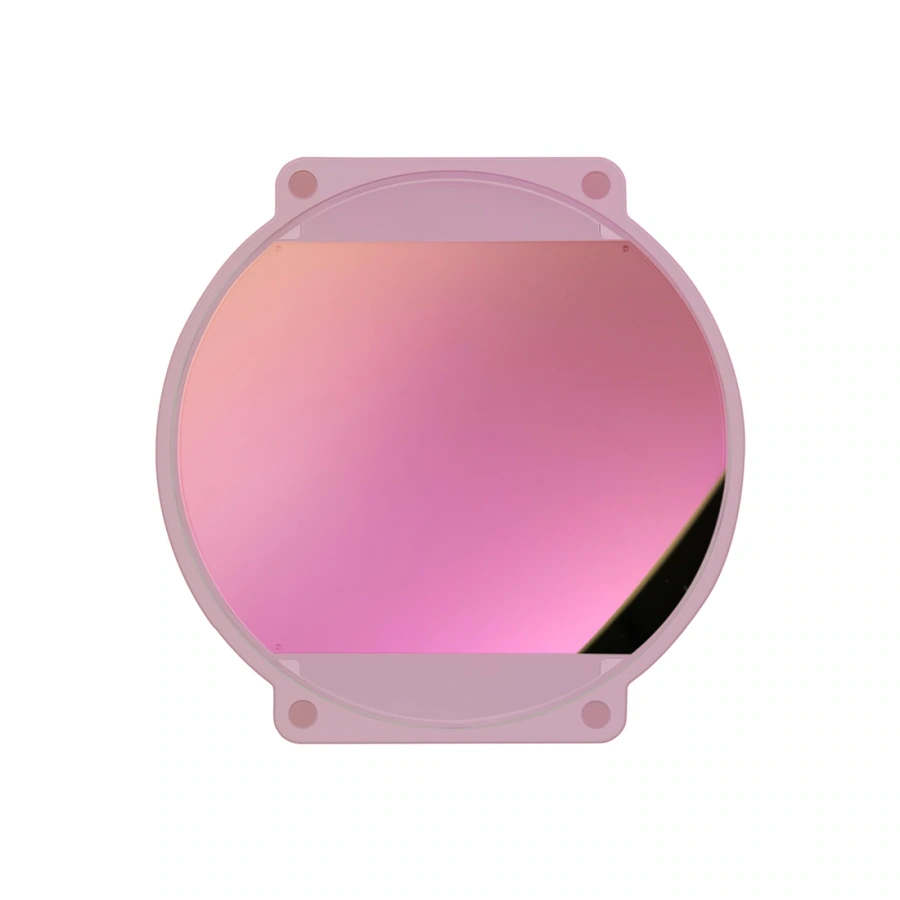

Nylon Polarized Lens Pink Purple Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses with an Abbe Value of 52. Thoroughly eliminates the "rainbow effect" and edge color dispersion typically associated with high-base polarized lenses.
Molecular-Level Polarization
Integrates premium Japan-imported PVA polarized film with the nylon base at a molecular level. Delivers a polarization efficiency of ≥99% to efficiently cut off severe glare from water and snow.
Premium Hard-Coating & True REVO
A high-density hard-coating securely anchors the 12-14 layer nano-scale ion sputtering pink-purple REVO layers to the flexible nylon base. Achieves Grade 0 cross-cut adhesion, completely preventing cracking or peeling under extreme rimless frame-fitting tension.
Strict Color Consistency
Automated spectrophotometer monitoring ensures absolute batch-to-batch consistency for the pink-purple mirror finish with a strictly controlled Delta E < 1.2, eliminating visual discrepancies in bulk orders.
Extreme Environment Durability
Standard super hydrophobic outer layer (water contact angle > 110°) effortlessly repels water. Passes the rigorous 2-hour boiling saltwater test and 96-hour salt spray test with zero delamination, ensuring peak performance in marine environments.
Nylon Polarized Lens Pink Purple Mirror Coated

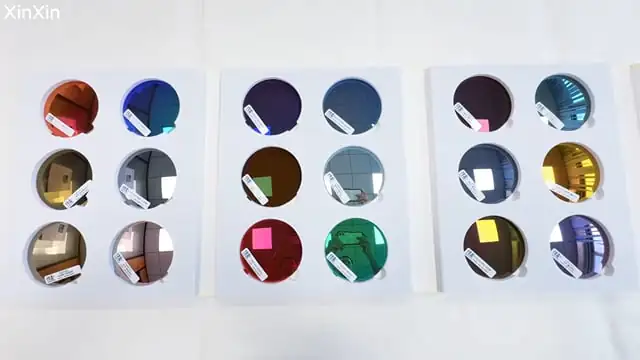

Click to play and see the real-world performance of our pink-purple polarized mirror nylon lens — showcasing its distinctive REVO finish and pure optical clarity.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Couture Dark Gray Base + Pink Purple Mirror Coated (REVO) |
| Coating Method | 12-14 Layer Vacuum Ion Sputtering |
| VLT / Category | 8-18% / CAT 0, 1, 2, 3, 4 |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Prism ≤0.12 Δ / Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly Recommended. Excellent chemical resistance against acetate plasticizers. Completely immune to stress cracking caused by acetate's cooling shrinkage during fitting. The pink-purple REVO coating remains firmly anchored under high rim tension.
- Rimless / Drill-mount — Supreme tensile strength ensures zero edge chipping or delamination during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Eco-friendly upgrade to Bio-based Nylon (castor oil derived) available for luxury ESG compliance
- Exclusive REVO mirror color development (e.g., Pink Purple, 24K Gold, Emerald Green)
- B-AR (Back-Surface AR) coating strictly recommended to eliminate rear ghost reflections
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static / Anti-fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Sample Lead Time: 7–10 working days
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Options: OEM/ODM, Bio-based Nylon option (ESG compliance), custom REVO colors
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report, Polarization Efficiency Test Report
Features & Applications
Technical Features
- Optical Clarity: The nylon base has an Abbe Value of 52, helping your collection maintain clean vision with reduced edge color dispersion in plano lens designs.
- Polarization Performance: Japan-imported PVA film delivers polarization efficiency of at least 99%, cutting harsh reflected glare for outdoor and water-facing eyewear programs.
- REVO Coating Adhesion: A 12–14 layer vacuum ion-sputtered pink-purple mirror stack achieves ASTM D3359 Grade 0 adhesion, reducing peeling risk during rimless drilling and fitting.
- Color Consistency: Spectrophotometer monitoring holds pink-purple mirror production to Delta E below 1.2, so approved samples and repeat orders match more closely.
- UV and Impact Compliance: UV400 protection and FDA 21 CFR 801.410 impact testing support export-ready product development without adding unsupported claims to your sales materials.
- Flexible OEM Specification: Premium Eyewear Brands and Lens Distributors can specify 2C–8C base curves, diameters up to 80 mm, Pantone matching, and tailored coating upgrades from a 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Lens Distributors
- Concept & Multi-Brand Stores
- Department Store Groups
Overview
Mirror-coated polarized lenses give outdoor collections a strong color signature without turning the product into a fashion-only story. The pink-purple REVO finish gives a range an immediate point of distinction while the nylon construction supports clear, comfortable visual performance.
Controlled coating adhesion reduces finishing risk during frame assembly, so approved color samples carry through to production. Custom coating and curve options let a collection keep its own visual direction, with the process managed in-house.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
12-14 Layer Ion-Assisted E-Beam Evaporation (PVD) — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how our polarized mirror nylon lens is manufactured using nano-scale Ion-Assisted E-Beam Evaporation in a Class 10,000 cleanroom.
