Nylon Sunglasses Lens Solid Color Yellow Tinted
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Supreme Optical Clarity
Engineered exclusively as 0.00D Plano Lenses with an Abbe Value of 52, rivaling crown glass for ultimate optical purity. Eliminates optical distortion, color fringing, and the "rainbow effect" typically associated with high base-curve lenses, ensuring racing-grade clarity.
Dip-Dyeing Tint Technology
Utilizing Precision Dip-Tinting, optical nylon demonstrates an exceptional affinity for premium dyes. This guarantees deep, uniform color integration—completely avoiding the muddiness of injection masterbatches—while maintaining strict batch-to-batch consistency with a Delta E < 1.0 and zero color migration.
Ultra-Lightweight & Crack Resistant
Boasting an ultra-low Density of 1.01 g/cm³ (16% lighter than PC). It exhibits outstanding mechanical stability and crack resistance, completely eliminating edge chipping risks during CNC drilling and slotting for rimless designs.
UV400 Full Protection
Delivers uncompromised safety through strictly controlled material properties, offering 100% blockage of harmful UVA and UVB rays (≤400nm, ≥99% blocking) across the full optical spectrum.
FDA Standard Impact Safety
Fully compliant with the FDA 21 CFR 801.410 drop-ball test, ensuring reliable mechanical safety for daily and fashion use within an ultra-thin 1.5mm profile.
Nylon Sunglasses Lens Solid Color yellow Tinted
Click to play and see the performance and details of our yellow nylon lenses in real-world settings.
Technical Specifications
| Material | Optical Grade Nylon (Polyamide) |
| Color | Couture Yellow (Pantone matching available) |
| VLT / Category | 43-80% / CAT 0, 1, 2, 3, 4 |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Plano 0.00D; Residual Astigmatism ≤0.09D; Residual Prism ≤0.12Δ, measured at the optical reference point. |
| Base Curve | 0.5C, 2C, 3C, 4C, 4.5C, 5C, 6C, 8C Available |
| Center Thickness | 1.2mm - 4.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / UKCA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving with oil, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly recommended. Excellent chemical resistance against acetate plasticizers. Fully immune to stress cracking caused by cooling shrinkage during fitting
- Rimless / Drill-mount — Superior tensile strength ensures zero edge chipping during CNC drilling and slotting.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Optimal compatibility, lightweight and corrosion-resistant, ideal for premium eyewear frame designs.
- Pantone matching for precise solid base colors
- Standard UV protection integrated in all lenses
- B-AR (Back-Surface AR) coating recommended to eliminate rear reflections
- Coating upgrades: HC / Oleophobic / Hydrophobic / Anti fog
- Simple Packaging: PE bag + white box, Premium Packaging: Individual color box + cloth bag, Blister: Transparent blister box, Custom: Brand LOGO packaging
- MOQ: 300 Pairs/Specification
- Sample Lead Time: 7–10 working days, allowing you to verify quality before bulk order
- Bulk Lead Time: 15–20 working days (subject to quantity and customization complexity)
- Custom Options: Pantone color matching, B-AR coating
- Reports: Light Transmittance Test Report, UV Blocking Test Report, Impact Resistance Test Report, Color Consistency (Delta E) Test Report, Salt Spray Test Report
Features & Applications
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Technical Features
- Optical Purity: An Abbe Value of 52 puts this PA-12 nylon lens in the same optical tier as crown glass. Visual distortion, color fringing, and the peripheral “rainbow effect” common in high base-curve frames are effectively eliminated — protecting your brand from post-sale complaints.
- Consistent Tint Chemistry: Precision dip-dyeing achieves deep, uniform color integration throughout the lens matrix. Strict batch-to-batch control holds Delta E < 1.0 and guarantees zero color migration, so every shipment matches the approved Pantone standard without exception.
- UV400 Compliance: Full blockage of UVA and UVB radiation (≤400nm, ≥99% blocking) is built into the base material. FDA and CE compliance is not an add-on — it is inherent to the lens, removing a common regulatory bottleneck from your export process.
- Scrap Reduction at Assembly: At 1.01 g/cm³ — 16% lighter than polycarbonate — this nylon lens carries superior tensile strength that virtually eliminates edge chipping during CNC drilling and slotting. Rimless and drill-mount production runs see a direct reduction in material waste and rework costs.
- Mechanical Safety: FDA 21 CFR 801.410 drop-ball compliance is confirmed at a 1.5mm center thickness. This performance envelope supports ultra-thin fashion profiles without trading away the impact resistance that premium eyewear brands and high-end optical chains require.
- Scalable Customization: Wide geometry options — base curves from 0.5C to 8C, diameters of 71mm, 75mm, and 80mm, and center thickness from 1.2mm to 4.0mm — accommodate the broadest possible range of frame designs. Pantone color matching and optional B-AR coating are available from a 300-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Luxury Fashion Houses
- High-End Optical Chains
- Lens Distributors
Overview
High-visibility solid tints require strict control over both optical purity and color density to maintain their aesthetic impact. This yellow nylon lens delivers a bold color story while maintaining exceptional clarity, ensuring the finished eyewear piece performs precisely as designed.
Precision tinting chemistry holds the bold yellow shade across every production batch, so your final assembly runs without the QA stops that break delivery schedules. Pantone-matched tints, specific curve options, and custom packaging can be tailored in your brief. Xinxin runs the complete customization flow under one roof, turning a design intent into a confirmed sample.

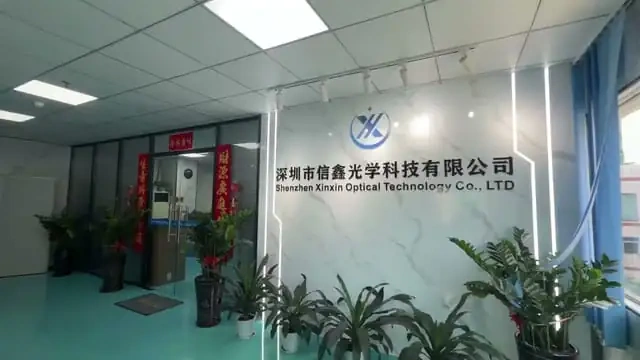

The True Manufacturer of Sunglasses and Goggles Lens in Shenzhen of China
Click to play and see how our yellow nylon lenses are crafted with precision and care
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
