PC Polarized Lens Blue Silver Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Cool Metallic Identity
Blue-silver REVO mirror coating over a smoke-gray polarized PC base gives your sunwear range a cool reflective accent.
Polarization Beneath the Reflection
≥99% polarization efficiency reduces reflected glare; UV400 provides ≥99% UV blocking up to 400 nm.
Defined Plano Platform
0.00D PC with Abbe 30 and specific gravity 1.20 g/cm³; FDA 21 CFR 801.410 drop-ball testing is arranged per the confirmed specification.
Transmission Chosen at Sampling
Customizable across CAT 0–4, with final VLT/CAT confirmed at sampling; 8–18% VLT (CAT 3) is an illustrative reference only.
Mirror Acceptance by Agreement
Agree the blue-silver reflection target and ASTM D3359 adhesion checks before production; verification is arranged per the confirmed specification.

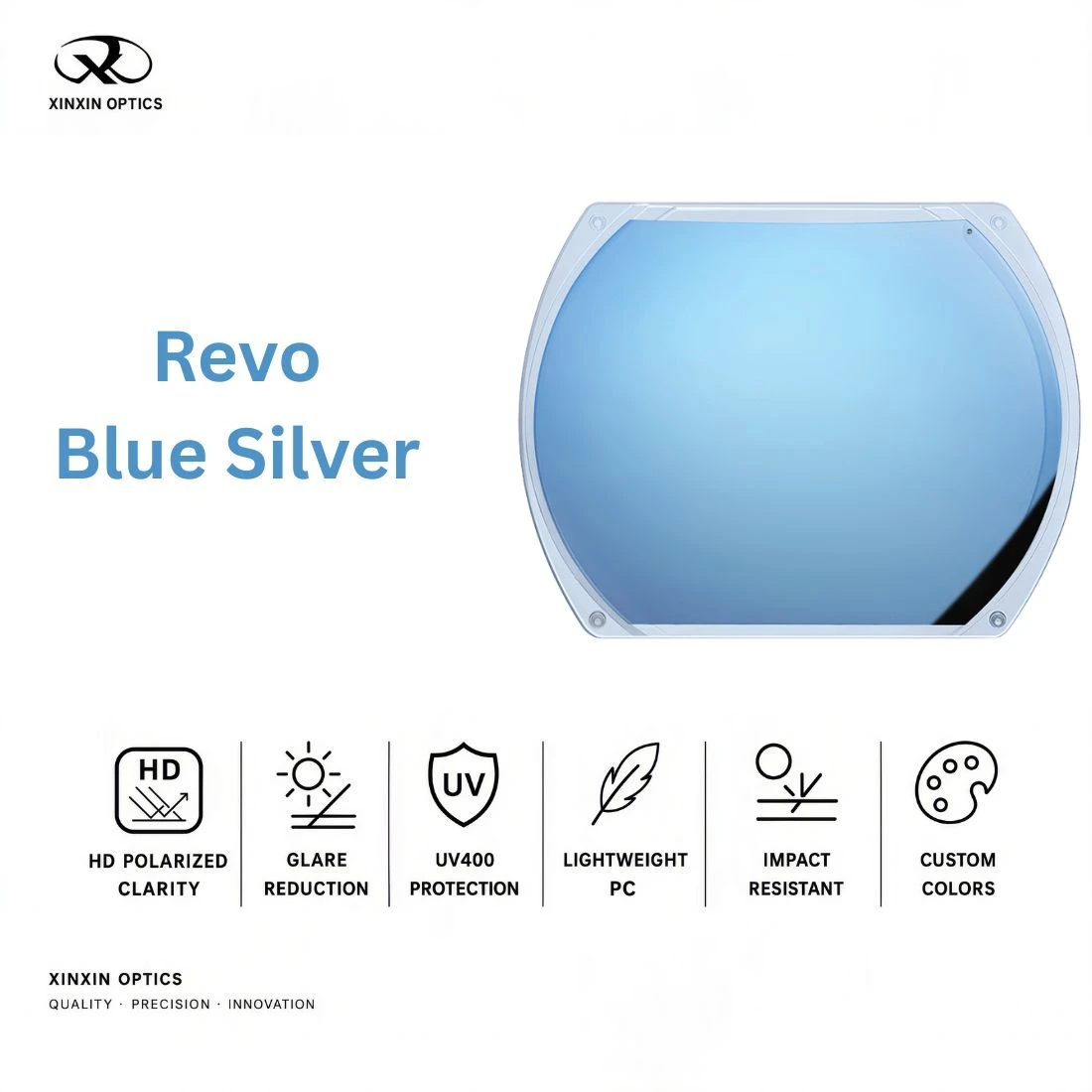

PC Polarized Lens Blue Silver Mirror Coated
Click to play and see the blue-silver REVO mirror finish on this PC polarized lens — a smoke-gray base under an oceanic blue and reflective silver mirror face; final VLT/CAT confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Smoke Gray Base + Blue Silver Mirror Coated (REVO) |
| Coating Method | Multi-Layer Vacuum Deposition (layer stack confirmed at sampling) |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | 8-18% (CAT 3, illustrative reference only); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 (test arranged per confirmed specification) |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification) |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended first choice. Frame dimensions, bevel profile, and glazing pressure require sample verification; eyewire closure tension must be controlled.
- Other Full-Rim Frames in Scope — TR90 / Grilamid TR90, metal, titanium, stainless steel, and carbon fiber constructions are compatible; glazing settings require sample verification and controlled eyewire closure tension.
- Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
- Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports arranged per confirmed specification
Features & Applications
Technical Features
- Blue-Silver Surface Brief: Define the reflection density and coating uniformity of the multi-layer vacuum-deposited REVO finish against an agreed sample so your collection has a clear visual acceptance reference.
- Polarized UV400 Specification: A smoke-gray PC base combines ≥99% polarization efficiency for reflected-glare reduction with ≥99% UV blocking up to 400 nm, giving buyers separate specifications for polarization and UV protection.
- Plano Material Selection: Abbe 30 and specific gravity 1.20 g/cm³ describe the 0.00D PC platform; FDA 21 CFR 801.410 drop-ball testing is arranged per the confirmed specification for your safety review.
- Coating Verification Plan: Arrange ASTM D3359 cross-cut adhesion and salt-spray testing per the confirmed specification before accepting the mirror package for production.
- Full-Rim Fit Review: Plan full-rim glazing with controlled eyewire closure tension and sample verification; TR90, metal, titanium, stainless steel, and carbon fiber are compatible; acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Order Configuration: Lens Distributors and E-commerce D2C Brands can brief 2C / 4C / 6C / 8C base curves, 71 / 75 / 80 mm diameters and coating options at a 300-pair MOQ, with transmission customizable across CAT 0–4 and final VLT/CAT confirmed at sampling.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Water Sports & Marine Retailers
- Lens Distributors
- E-commerce D2C Brands
Overview
Blue and silver reflections give an outdoor sunwear collection a crisp metallic accent. The smoke-gray polarized base adds glare control beneath that visual identity, letting your range pair a cool mirror appearance with a functional lens story.
Custom mirror development lets you coordinate the reflective finish with your collection’s design direction. Bring the color reference and finishing priorities to Xinxin, your lens manufacturer in Shenzhen, to agree an OEM/ODM sampling brief before production.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Note: CAT 3 (8–18%) is an illustrative reference only, not a measured or confirmed value for this blue-silver mirror; transmission is customizable across CAT 0–4, with final VLT/CAT confirmed at sampling.
Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses

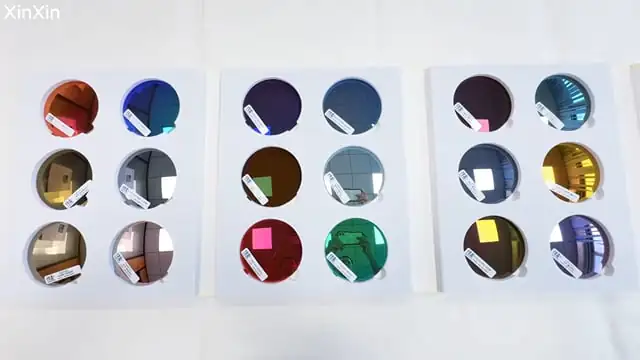

Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.
International Quality Standards
Active certifications — verified & compliant
.webp)
