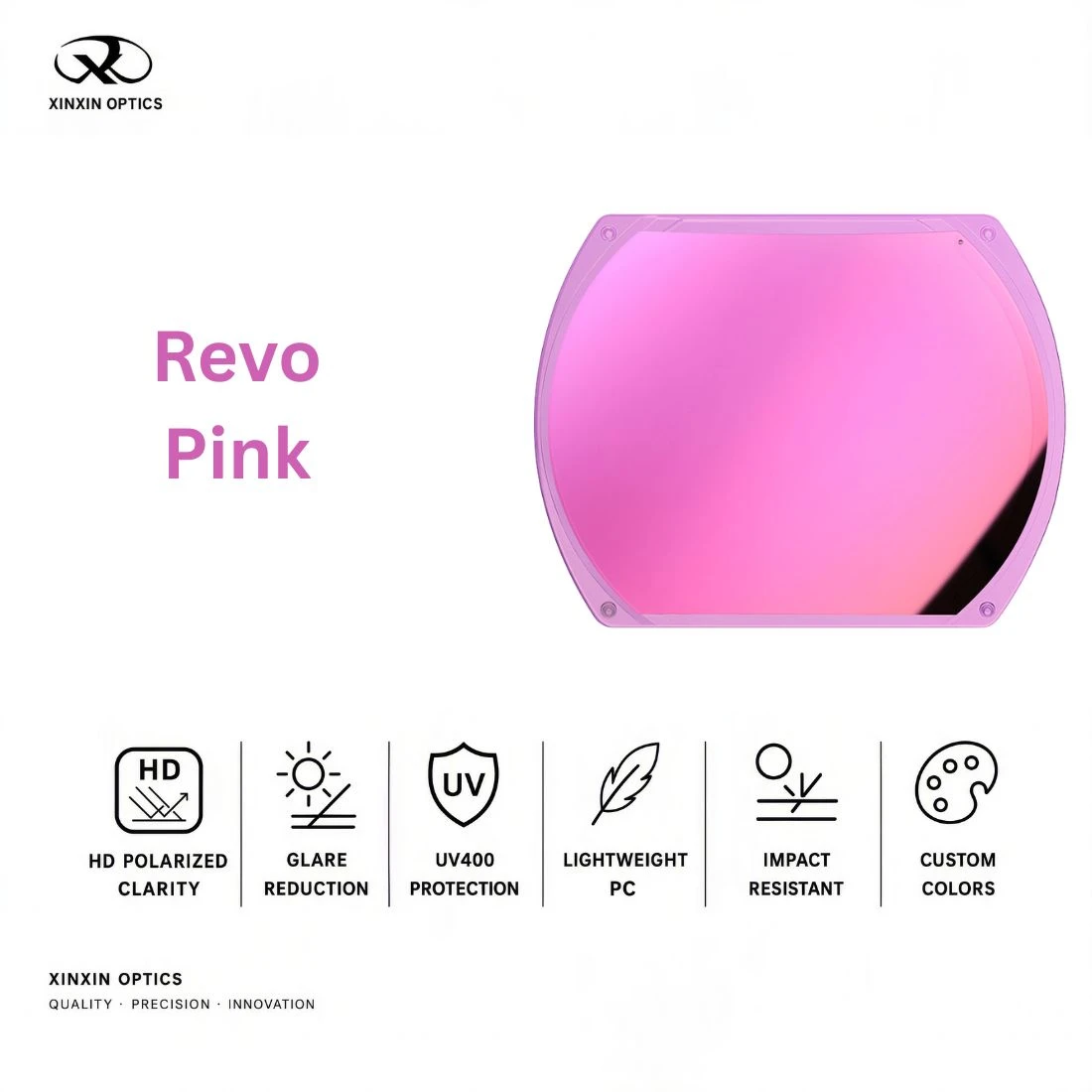

PC Polarized Lens Pink Mirror Coated
Pink Mirror Coated
Pink Mirror Coated
Optical Grade PC, Premium Polarized Film
Mirror Coated
pc-polarized-mirror-lens
PC Polarized Lens Pink Mirror Coated
pc polarized lens mirror color pink
Customizable
XinXin Optics Customization Lens Series

PC Polarized Lens Pink Mirror Coated

Item No: Pink Mirror Coated
Color Series: Mirror Coated
Materials: Optical Grade PC, Premium Polarized Film
Service Mode: OEM & ODM (Customization)
MOQ: 300 pairs per style per color
Key Features

Engineered Optical Excellence

Every lens inherits five core performance pillars — from optical purity to impact safety.

01

Everyday Pink REVO

A multi-layer vacuum-deposited pink mirror on optical-grade polycarbonate gives daily-wear collections a soft, fashionable reflection.

02

Comfortable CAT 2 Reference

18–43% VLT for everyday light, customizable across CAT 0–4; final VLT/CAT confirmed at sampling.

03

Glare-Free Commutes

≥99% polarizing efficiency reduces reflections from car hoods, asphalt, and glass facades.

04

Featherlight PC Base

0.00D plano polycarbonate (Abbe 30, 1.20 g/cm³), specified to support FDA 21 CFR 801.410 drop-ball testing.

05

Pink That Matches Every Reorder

Spectrophotometer checks hold the customer-agreed Delta E target (reference < 1.0); hard-coat adhesion is verified per the confirmed specification.

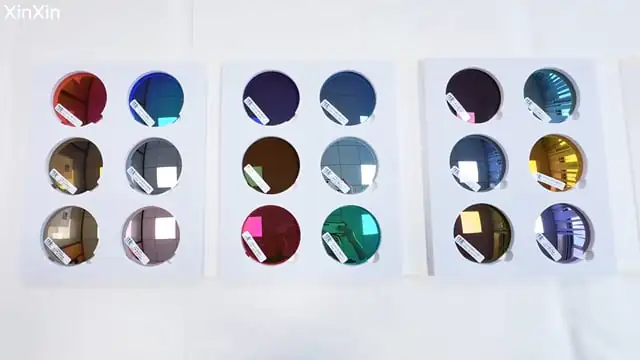

Real-World Lenses — From our Factory Floor

PC Polarized Lens Pink Mirror Coated

Click to play and see the pink REVO mirror finish on this PC polarized lens — a rose-tinted polarized base under a bright pink reflective face; final VLT/CAT confirmed at sampling.

Technical Data

Technical Specifications

Status Validated
Doc. Ref SPEC-PINK MIRROR COATED-REV.A
Material Optical Grade PC + Premium Polarized Film
Color Rose Pink Base + Pink Mirror Coated (REVO)
Coating Method Multi-Layer Vacuum Deposition (layer stack confirmed at sampling)
Polarization Efficiency ≥ 99%
VLT / Category 18-43% (CAT 2 reference); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling
UV Protection UV400 (≤400nm, ≥99% blocking)
Abbe Value 30
Specific Gravity 1.20 g/cm³
Optical Accuracy Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D
Base Curve 2C / 4C / 6C / 8C Available
Center Thickness 1.5mm–2.0mm (±0.05mm)
Diameter 71mm / 75mm / 80mm (custom available)
Impact Test FDA 21 CFR 801.410 (test arranged per confirmed specification)
Certifications CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification)
MOQ 300 pairs per style per color
Origin Shenzhen, China
Logo Laser engraving, Screen printing, UV printing, Decal, Embedded logo
System Generated: 10/19/2026, 5:51:06 AM Secured by Xinxin Quality Control
Business & Compatibility

Production-Ready Integration

Everything you need to source with confidence

Frame Compatibility
  • PC Full-Rim Frames — Recommended first choice. Have frame dimensions, the lens bevel profile, and glazing pressure checked against a sample so the mirror edge stays clean and assembly does not run overly tight.
  • Other Full-Rim Frames in Scope — Also compatible with TR90 / Grilamid TR90 plus metal, titanium, stainless, and carbon fiber constructions; sample-verified glazing settings keep eyewire closure tension controlled.
  • Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
Customization Available
  • Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
  • Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
  • B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
  • Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
  • Simple, premium, blister, or branded-logo packaging and labeling options
B2B Terms
  • MOQ: 300 pairs per style per color
  • Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
  • Bulk Lead Time: 15–20 working days (subject to quantity)
  • Custom Base Curve / Color: 300 Pairs minimum
  • Deep Custom: 500 Pairs minimum
  • Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
  • Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports
Product Highlights

Features & Applications

Technical Features

  • Rose-Tinted Glare Control: A ≥99% efficiency polarizing film under the pink REVO face tames reflected glare from water, glass, and wet road surfaces, so fashion frames deliver genuine all-day sun performance rather than a purely decorative tint.
  • Mirror Stack Locked to the Base: A dense hard coat anchors the multi-layer vacuum-deposited pink finish; cross-cut adhesion and coating-retention checks are arranged per the confirmed specification, protecting edge cleanliness through edging and full-rim glazing.
  • Coastal-Program Durability: Optional hydrophobic and anti-seawater surface upgrades address sweat, sunscreen film, and salt-laden air, and boiling-saltwater, salt-spray, and environmental durability testing is arranged per the confirmed specification before a coastal collection commits to volume.
  • Lightweight UV400 Shield: UV absorbers run through the optical-grade PC base itself (Abbe 30, 1.20 g/cm³), holding ≥99% UVA/UVB blockage through 400 nm while supporting FDA 21 CFR 801.410 drop-ball testing in production programs.
  • Full-Rim Assembly by Design: PC polarized lenses glaze into full-rim frames only — TR90, metal, titanium, stainless, and carbon fiber constructions are compatible, acetate frames are incompatible, and rimless drill-mounting is prohibited — so sample-verified bevel and glazing settings keep assembly yields predictable.
  • Accessible Program Depth: Base curves 2C, 4C, 6C, and 8C with diameters of 71 mm, 75 mm, and 80 mm (other sizes on confirmation), B-AR and functional coating upgrades, and transmission targets across CAT 0–4 (final VLT/CAT confirmed at sampling) are configurable from a 300-pair MOQ — a low-risk way for E-commerce D2C Brands and Department Store Groups to extend a sun collection with a fashion mirror SKU.

Perfect For

  • Premium Eyewear Brands
  • Independent Eyewear Designers
  • Private Label Distributors
  • Luxury Fashion Houses
  • High-End Optical Chains
  • Sports & Automotive Lifestyle Labels

Overview

Pink sells a sun collection before a single spec is read — and this lens backs the color up with substance, pairing the reflective REVO face with a rose-tinted polarized base so the statement look never costs real glare control.

Where a plain tinted mirror gives a shopper one reason to buy, your line gets two: shelf-catching color and all-day wearing comfort. Brief the shade, curve, and coating package together — Xinxin develops the mirror program in-house and returns a matched sample for sign-off.

Lens Category

Category VLT (%) Usage Environment
CAT 0 80% - 100% Indoor or overcast low-light conditions
CAT 1 43% - 80% Low-light outdoor, overcast
CAT 2 18% - 43% Medium light, daily outdoor
CAT 3 8% - 18% Strong outdoor light, sunny
CAT 4 3% - 8% Extreme light, e.g., skiing, mountaineering

Note: CAT 2 (18–43%) is the reference layout for this pink mirror; transmission targets across CAT 0–4 are developed to the customer’s specification and the final VLT/CAT is confirmed at sampling.

Product Manufacturing in Action

Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses

Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.

Certifications & Compliance

International Quality Standards

Active certifications — verified & compliant

ISO 9001
ISO 9001
BSCI
BSCI
FDA
FDA
CE
CE
RoHS
RoHS
Prop 65
Prop 65
21 CFR 801.410
21 CFR 801.410
ANSI Z80.3
ANSI Z80.3
ANSI Z87.1
ANSI Z87.1
EN ISO 12312-1
EN ISO 12312-1
EN ISO 12870
EN ISO 12870
UKCA Mark
UKCA Mark
AS/NZS 1067.1
AS/NZS 1067.1
ISO 13485
ISO 13485
Start Your Project

Ready to Elevate Your Sunglass and Goggles Lenses?

Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.

Industry-Leading Optical Quality — Consistent clarity and precision across all lens types, trusted by customers since 2012.
Advanced Customization — Expertise in tailoring base curves, colors, and coatings to perfectly match your unique designs.
Free Sample Kit — Evaluate our optical clarity, tint consistency, and coatings firsthand before placing bulk orders.
15-Day Lead Time — Industry-leading turnaround from order to dispatch for bulk lens production.
No MOQ on Samples — Test materials and colors thoroughly before full commercial commitment.
ISO-Certified Quality — CE, FDA, ANSI, and EN compliant production for global market access.

Start Your Project

Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.

Secure 256-bit Encrypted | NDAs available
Quote Email +86 136 5149 3109
