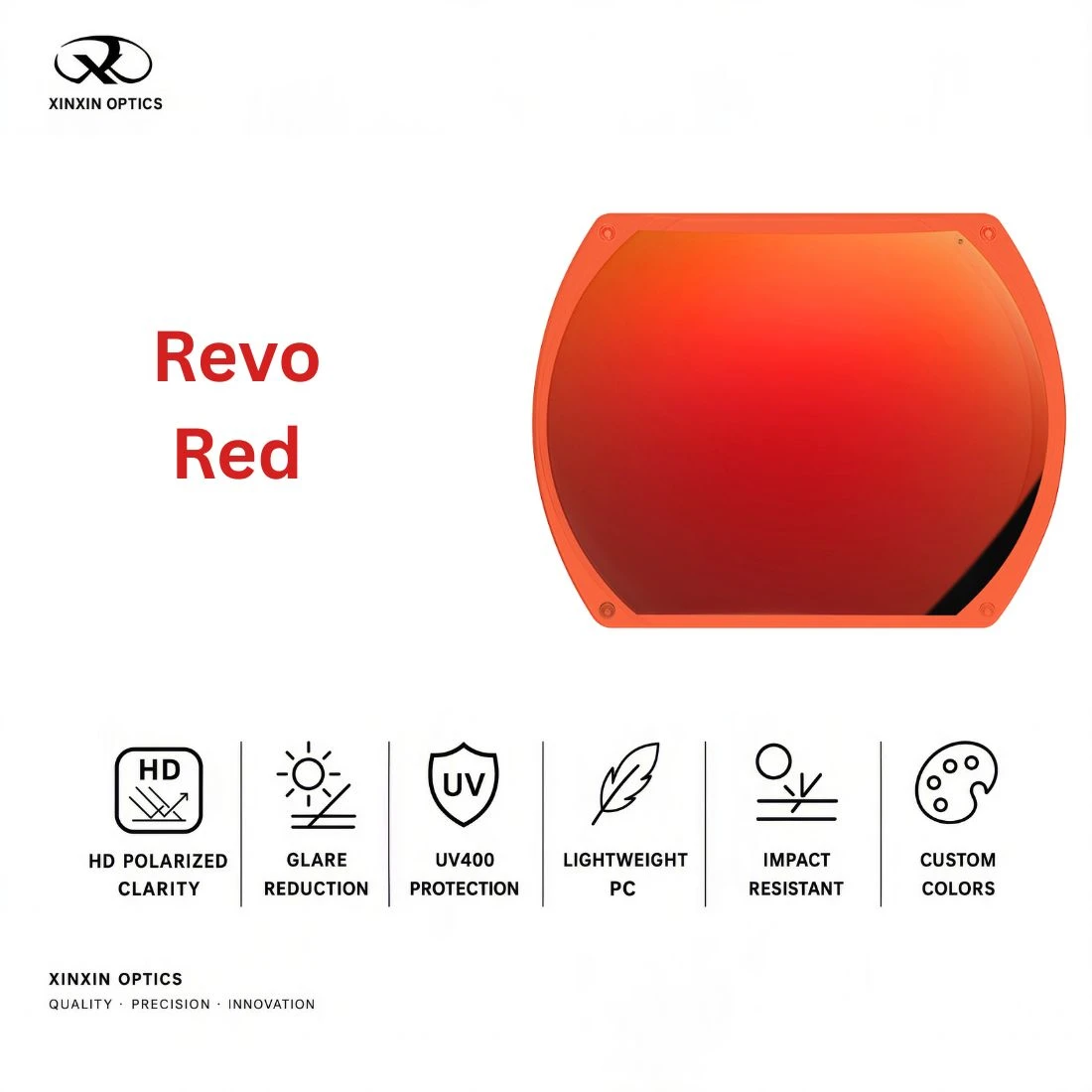

PC Polarized Lens Red Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Sport-Ready Red Mirror
A hard-coat-anchored, multi-layer vacuum-deposited red REVO finish adds bold team color to polycarbonate sport lenses.
Impact-Ready for Action
0.00D plano polycarbonate (Abbe 30, 1.20 g/cm³) specified to support FDA 21 CFR 801.410 drop-ball testing in production.
Field and Court Glare Control
≥99% polarizing efficiency against glare from water, asphalt, and glass.
Adjustable Shade
8–18% VLT (CAT 3 reference), customizable across CAT 0–4, with final VLT/CAT confirmed at sampling.
Team-Matched Color
Spectrophotometer checks keep the red reflection within the customer-agreed Delta E target (reference < 1.0) across replenishment batches.
PC Polarized Lens Red Mirror Coated
Click to play and see the red REVO mirror finish on this PC polarized lens — a smoke-gray polarized base under a high-saturation red reflective face; final VLT/CAT confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Smoke Gray Base + Red Mirror Coated (REVO) |
| Coating Method | Multi-Layer Vacuum Deposition (layer stack confirmed at sampling) |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | 8-18% (CAT 3 reference); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 (test arranged per confirmed specification) |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification) |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended first choice. Have frame dimensions, the lens bevel profile, and glazing pressure checked against a sample so the mirror edge stays clean and assembly does not run overly tight.
- Other Full-Rim Frames in Scope — Also compatible with TR90 / Grilamid TR90 plus metal, titanium, stainless, and carbon fiber constructions; sample-verified glazing settings keep eyewire closure tension controlled.
- Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
- Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports
Features & Applications
Technical Features
- Statement Red Face: The multi-layer vacuum-deposited red REVO stack sets a bold, performance-led identity on the frame front, while the smoke-gray polarized base underneath keeps the wearer’s view neutral. One mirror SKU can therefore serve both fashion statements and functional sun programs.
- Open-Water Glare Control: Reflections off water, wet road, and vehicle glass are cut by the ≥99% efficiency polarizing film, so the statement color never costs forward-vision clarity on the water or the road.
- Mirror Stack Anchored for Edging: A dense hard coat bonds the red REVO face to the PC base and carries it through edging and full-rim glazing; cross-cut adhesion and coating-retention results are confirmed through testing arranged per the confirmed specification.
- Marine Durability Options: Salt fog, sweat, and sunscreen film are the hardest conditions a mirror finish faces. Hydrophobic and anti-seawater surface upgrades are available, and the boiling-saltwater, salt-spray, and environmental durability package is arranged to the confirmed specification.
- UV400 Built Into the Base: UV absorbers run through the optical-grade polycarbonate itself (Abbe 30, 1.20 g/cm³), blocking ≥99% of UVA and UVB through 400 nm. The same lightweight platform supports FDA 21 CFR 801.410 drop-ball testing in production programs.
- Full-Rim Program, Configured to Brief: PC polarized lenses glaze into full-rim frames only — TR90, metal, titanium, stainless, and carbon fiber constructions are compatible; acetate frames are incompatible; rimless drill-mounting is prohibited. From a 300-pair MOQ, Sports & Automotive Lifestyle Labels and Department Store Groups can choose 2C, 4C, 6C, or 8C base curves and 71 mm, 75 mm, or 80 mm diameters (other sizes on confirmation), plus B-AR and functional coatings and CAT 0–4 transmission targets (final VLT/CAT confirmed at sampling).
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Water Sports & Marine Retailers
- Department Store Groups
- Optical Retailers
Overview
Red is the color a sport collection reaches for when the shelf has to say performance at a glance — and few backdrops reward that signal like open water and bright coastline.
Send one brief covering the red reflection, curve, and protective coatings — the engineering team scopes a sample-ready spec, and pilot volumes let a marine or sport capsule prove the shelf before a full program commits.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Note: CAT 3 (8–18%) is the reference layout for this red mirror; transmission targets across CAT 0–4 are developed to the customer’s specification and the final VLT/CAT is confirmed at sampling.
Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses

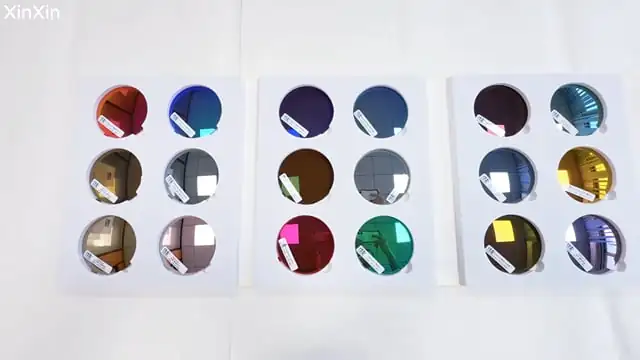

Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.
