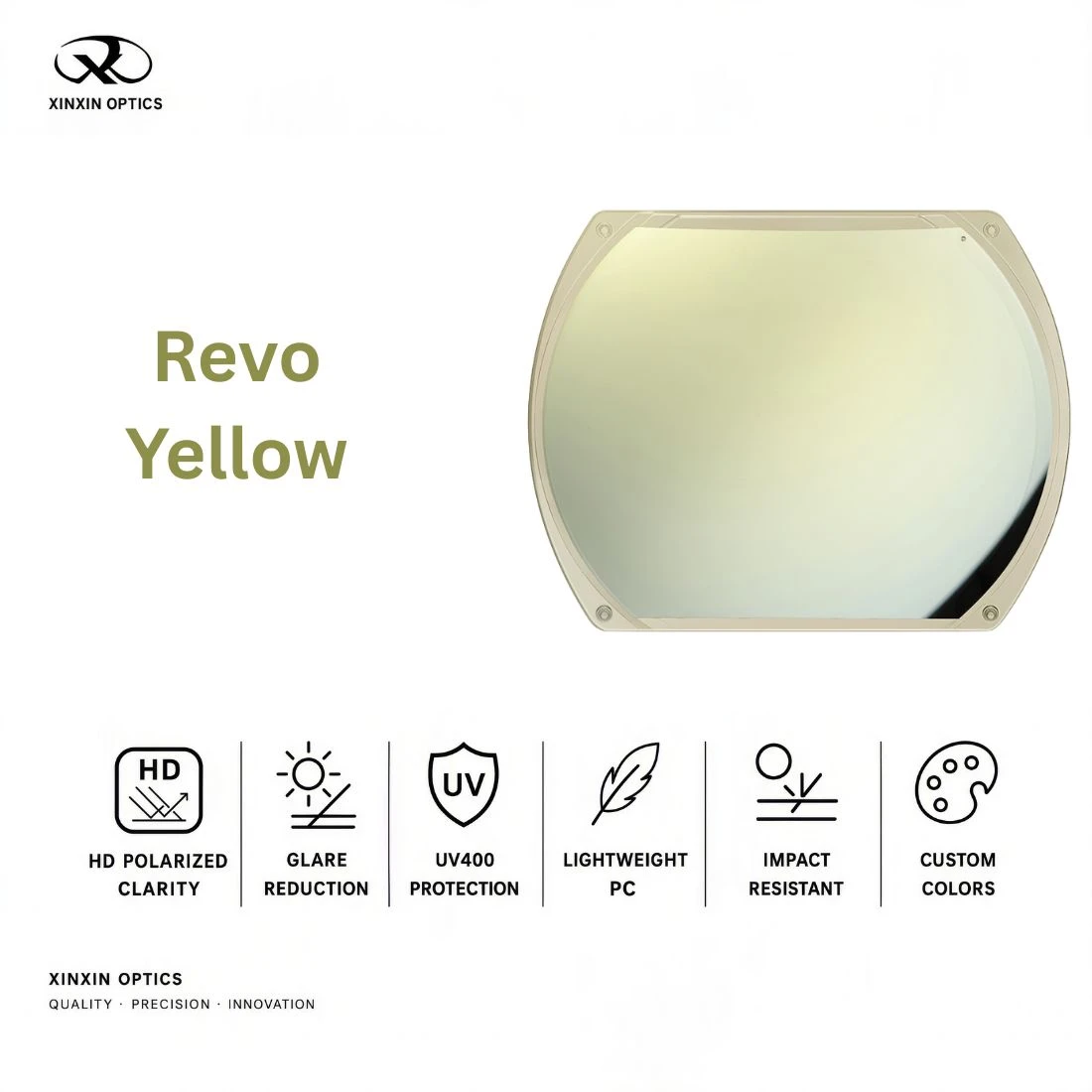

PC Polarized Lens Yellow Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Shatter-Resistant Optical Substrate
Engineered from premium optical-grade polycarbonate (Abbe 30, 1.20 g/cm³), this 0.00D plano core delivers featherweight durability designed to pass FDA 21 CFR 801.410 drop-ball impact compliance across mass production.
High-Efficiency Glare Suppression
Integrated polarizing film layers filter ≥99% of blinding specular bounce from road asphalt, windshields, water surfaces, and metal panels, securing high-clarity road vision for cyclists and runners.
Dielectric Yellow REVO Deposition
Multi-layer vacuum coating produces an energetic yellow reflective sheen anchored by an adhesion-promoting hard coat; cross-cut adhesion (ASTM D3359) and coating retention are confirmed per customer specification.
Spectrophotometric Shade Control
Rigorous colorimetry maintains the radiant yellow reflection within the customer-agreed Delta E boundary (reference: < 1.0) against the approved golden-yellow master, eliminating visual drift across seasonal reorders.
Hydrophobic & Coastal Endurance
Optional oleophobic, water-repellent, and anti-seawater surface treatments shed perspiration and salt spray, with boiling-saltwater and neutral salt-spray evaluations arranged to customer specification.
PC Polarized Lens Yellow Mirror Coated

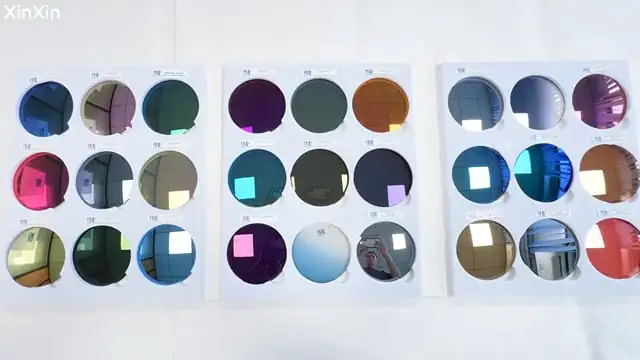

Click to play and see the yellow REVO mirror finish on this PC polarized lens — a smoke-gray polarized base under a radiant yellow reflective face; final VLT/CAT confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Smoke Gray Base + Yellow Mirror Coated (REVO) |
| Coating Method | Multi-Layer Vacuum Deposition (layer stack confirmed at sampling) |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | 8-18% (CAT 3 reference); customizable across CAT 0–4 — final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 (test arranged per confirmed specification) |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS (tests and documentation arranged per confirmed specification) |
| MOQ | 300 pairs per style per color |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended first choice. Have frame dimensions, the lens bevel profile, and glazing pressure checked against a sample so the mirror edge stays clean and assembly does not run overly tight.
- Other Full-Rim Frames in Scope — Also compatible with TR90 / Grilamid TR90 plus metal, titanium, stainless, and carbon fiber constructions; sample-verified glazing settings keep eyewire closure tension controlled.
- Assembly Restrictions — Full-rim glazing only. Acetate frames are incompatible; any rimless drill-mount assembly is strictly prohibited.
- Exclusive REVO mirror color development (e.g., Fire Blue, 24K Gold, Emerald Green)
- Custom transmission targets across CAT 0-4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating to manage rear ghost reflections in driving and urban use
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 300 pairs per style per color
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, custom REVO mirror colors, transmission targets, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, Salt Spray, and Polarization Efficiency reports
Features & Applications
Technical Features
- High-Contrast Road Optics: Deliver enhanced road contour definition in fluctuating lighting conditions through a high-luminance yellow REVO mirror layer, while the underlying neutral smoke-gray polarized substrate prevents color oversaturation.
- Surface Glare Suppression: A high-efficiency core polarizing film eliminates ≥99% of blinding reflections from wet tarmac, vehicle hoods, and windshields, maintaining clear forward vision during high-speed cycling and running.
- Resilient Multi-Layer Adhesion: Vacuum-deposited dielectric layers adhere tenaciously through a resilient primer hard coat. ASTM D3359 cross-cut adhesion testing and thermal cycle evaluations are arranged per confirmed specification to prevent bevel-edge peeling during precision glazing.
- Structural Impact Safety: Injection-molded optical-grade polycarbonate (Abbe 30, 1.20 g/cm³) provides an intrinsically shatter-resistant barrier, blocking ≥99% of UVA and UVB radiation up to 400 nm while meeting FDA 21 CFR 801.410 drop-ball compliance.
- Active Hydrophobic Protection: For intensive endurance training or coastal environments, optional hydrophobic, oleophobic, and anti-seawater topcoats shed perspiration and grease, verified by boiling-saltwater and salt-spray testing per customer specification.
- Dedicated Full-Rim Glazing Program: Lens assembly is restricted strictly to full-rim frame architectures—compatible with TR90, metal, titanium, stainless steel, and carbon fiber; acetate frames are incompatible and rimless drill-mounting is prohibited. Sports & Automotive Lifestyle Labels and E-commerce D2C Brands can specify base curves (2C, 4C, 6C, 8C), diameters (71mm, 75mm, 80mm), B-AR back-surface coatings, and custom VLT targets across CAT 0–4 (final VLT/CAT confirmed at sampling) starting at 300 pairs.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Sports & Automotive Lifestyle Labels
- E-commerce D2C Brands
- Optical Retailers
Overview
High-contrast yellow mirror coatings give performance sunglasses an unmistakable competitive edge, amplifying terrain perception on roads and trails while commanding immediate visual attention.
We calibrate every vacuum coating run against your approved target to prevent batch-to-batch shift across seasonal replenishments. Whether developing custom base curves or rear anti-reflective stacks, our Shenzhen facility turns your collection brief into production-ready reality from agile 300-pair runs.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Note: CAT 3 (8–18%) is the reference layout for this yellow mirror; transmission targets across CAT 0–4 are developed to the customer’s specification and the final VLT/CAT is confirmed at sampling.
Multi-Layer Vacuum Deposition — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how Xinxin deposits the REVO mirror stack onto PC polarized lenses by multi-layer vacuum deposition; the final layer stack and process are confirmed per specification.
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
Thank You!
Your inquiry has been sent successfully. We will contact you within 24 hours.
Or contact us directly:
Related Series
View All Collections
Polarized Solid Gray

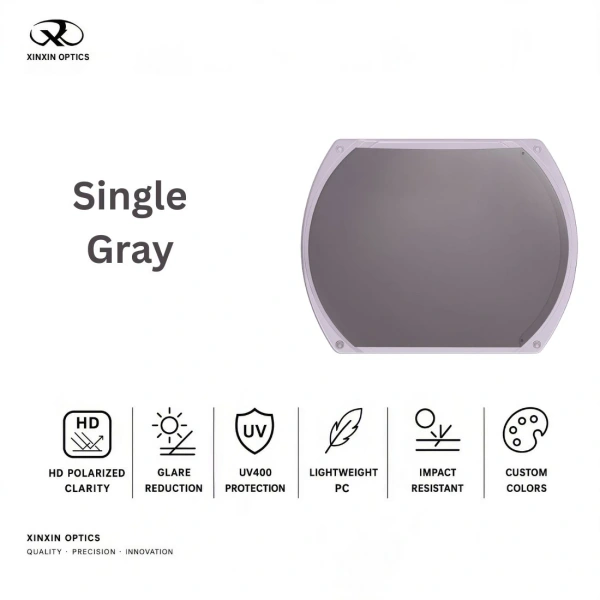

PC Polarized Lens Solid Color Gray Tinted
