PC Polarized Lens Solid Color Yellow Tinted
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
High-Visibility Yellow Tint
A solid yellow tint developed to the customer's target transmission category (CAT 0–4; final VLT/CAT confirmed at sampling) for outdoor eyewear lines seeking a bright color direction.
Glare-Suppressing Polarizer
The ≥99% efficient polarizing layer strips harsh reflected light from wet asphalt, track surfaces, water, and metallic equipment.
Impact-Resistant PC Substrate
Optical-grade 0.00D polycarbonate provides an inherently shatter-resistant, lightweight platform for sports eyewear and active lifestyles.
Color Verification
Spectrophotometer testing is used to manage the yellow tint profile against the Delta E target agreed with the customer (reference: < 1.0), checked from prototype through bulk production.
Complete UV400 Defense
Broad-spectrum absorbers block ≥99% of UVA and UVB rays up to 400 nm, meeting FDA 21 CFR 801.410 impact standards and international regulations.
PC Polarized Lens Solid Color Yellow Tinted

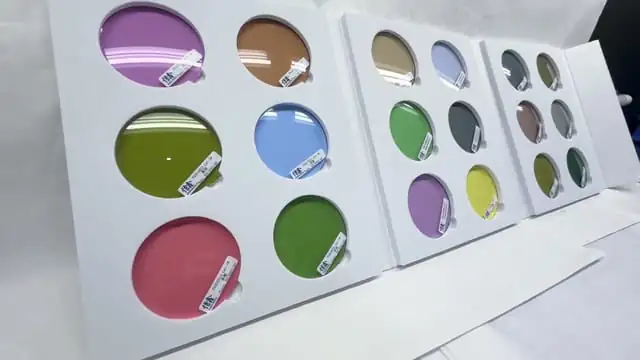

Click to view the PC polarized lens color series sample boards, where the yellow tint direction appears within the full color range; final tone and VLT/CAT are confirmed at sampling.
Technical Specifications
| Material | Optical Grade PC + Premium Polarized Film |
| Color | Yellow |
| Polarization Efficiency | ≥ 99% |
| VLT / Category | CAT 0–4 (3%–100% VLT) — tinted to the customer's target category; final VLT/CAT confirmed at sampling |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 30 |
| Specific Gravity | 1.20 g/cm³ |
| Optical Accuracy | Plano 0.00D; Prism ≤0.12 Δ; Cylinder ≤0.09 D |
| Base Curve | 4C / 6C / 8C Available |
| Center Thickness | 1.5mm–2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 100 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- PC Full-Rim Frames — Recommended match. Frame dimensions, lens bevel profile, and glazing pressure must be sample-verified to avoid overly tight assembly.
- Metal Full-Rim Frames — Sample-verified glazing setups can be used, with controlled eyewire closure tension.
- Assembly Restrictions — Full-rim assembly only. Incompatible with TR90 / Grilamid TR90 frames; rimless drill-mount assembly is strictly prohibited.
- Pantone-guided development for yellow base-tone approval and repeat-order color matching
- Custom base curves, diameters, and transmission targets across CAT 0–4 (final VLT/CAT confirmed at sampling)
- B-AR (Back-Surface AR) coating for reduced rear-surface reflections in sport and outdoor use
- Coating upgrades: Hard Coat / Oleophobic / Hydrophobic / Anti-static
- Simple, premium, blister, or branded-logo packaging and labeling options
- MOQ: 100 Pairs/Specification
- Sample Lead Time: 7–10 working days (reference; negotiable, quoted per confirmed specification)
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, Pantone tone matching, laser logo, B-AR and functional coatings
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency, and Polarization Efficiency reports
Features & Applications
Technical Features
- Customizable Transmission Range: The solid yellow tint is developed to the customer’s target light transmission across the CAT 0–4 range (3%–100% VLT); the final VLT/CAT is set at sampling and confirmed before bulk production.
- Glare-Suppressing Polarizer: A ≥99% polarization-efficiency film filters horizontal reflected light from wet roads, water, and metal surfaces; perceived brightness follows the transmission category chosen and is checked on the approved sample.
- Impact-Ready PC Body: Optical-grade 0.00D polycarbonate (Abbe 30, 1.20 g/cm³) absorbs the handling abuse that cracks lesser materials, which cuts warranty claims and assembly scrap.
- Batch Color Control: Spectrophotometer checks manage the yellow tone against the Delta E target agreed with the customer (reference: < 1.0), and replenishment orders are compared against the approved sample.
- UV400 With Certification Coverage: UVA/UVB blocking of ≥99% through 400 nm, an FDA 21 CFR 801.410 impact pass, and CE / ANSI / EN documentation keep export programs moving without regulatory surprises.
- Specification Freedom: Sunglasses Manufacturers and Lens Distributors can specify 4C–8C base curves, 71–80mm diameters, transmission targets across CAT 0–4 (confirmed at sampling), laser logos, and B-AR coatings from a 100-pair MOQ.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Sports & Automotive Lifestyle Labels
- E-commerce D2C Brands
- Optical Retailers
Overview
Most sunwear ranges go dark and stay dark, leaving the bright end of the color spectrum to clear lenses. A solid yellow polarized lens fills that slot in a catalog — a colorway brands can develop at their own transmission target, with the final VLT/CAT confirmed on samples before bulk.
That flexibility turns one frame platform into an all-season proposition — a colorway retail floors can merchandise beyond peak summer. Xinxin tints and checks every batch in-house in Shenzhen, moving a custom yellow tone from brief to bulk on a single production line.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
Precision Polarizer Lamination — How Xinxin Builds PC Polarized Lenses
Click to see how Xinxin laminates polarizing film, controls tint consistency, and verifies optical quality for PC polarized lens production.
International Quality Standards
Active certifications — verified & compliant
.webp)
