Nylon Polarized Lens Gray Green Mirror Coated
Engineered Optical Excellence
Every lens inherits five core performance pillars — from optical purity to impact safety.
Neutral Visual Balance
The dark-gray nylon base preserves natural color recognition while the green mirror face adds a technical outdoor character to plano sun-lens programs.
High-Efficiency Polarization
Japan-imported PVA film provides ≥99% polarization, reducing reflected glare from water, wet decks, windshields, and bright pavement.
Flexible REVO Protection
A 12–14-layer ion-sputtered gray-green mirror stack is secured by a durable hard coat for dependable edging, mounting, and daily outdoor use.
Controlled Color Matching
Spectrophotometer monitoring targets Delta E < 1.2, helping gray-green mirror pairs remain visually consistent across approved production batches.
Marine-Ready Surface
The hydrophobic top coat resists water spotting and salt exposure, supporting clear presentation in humid, coastal, and active environments.

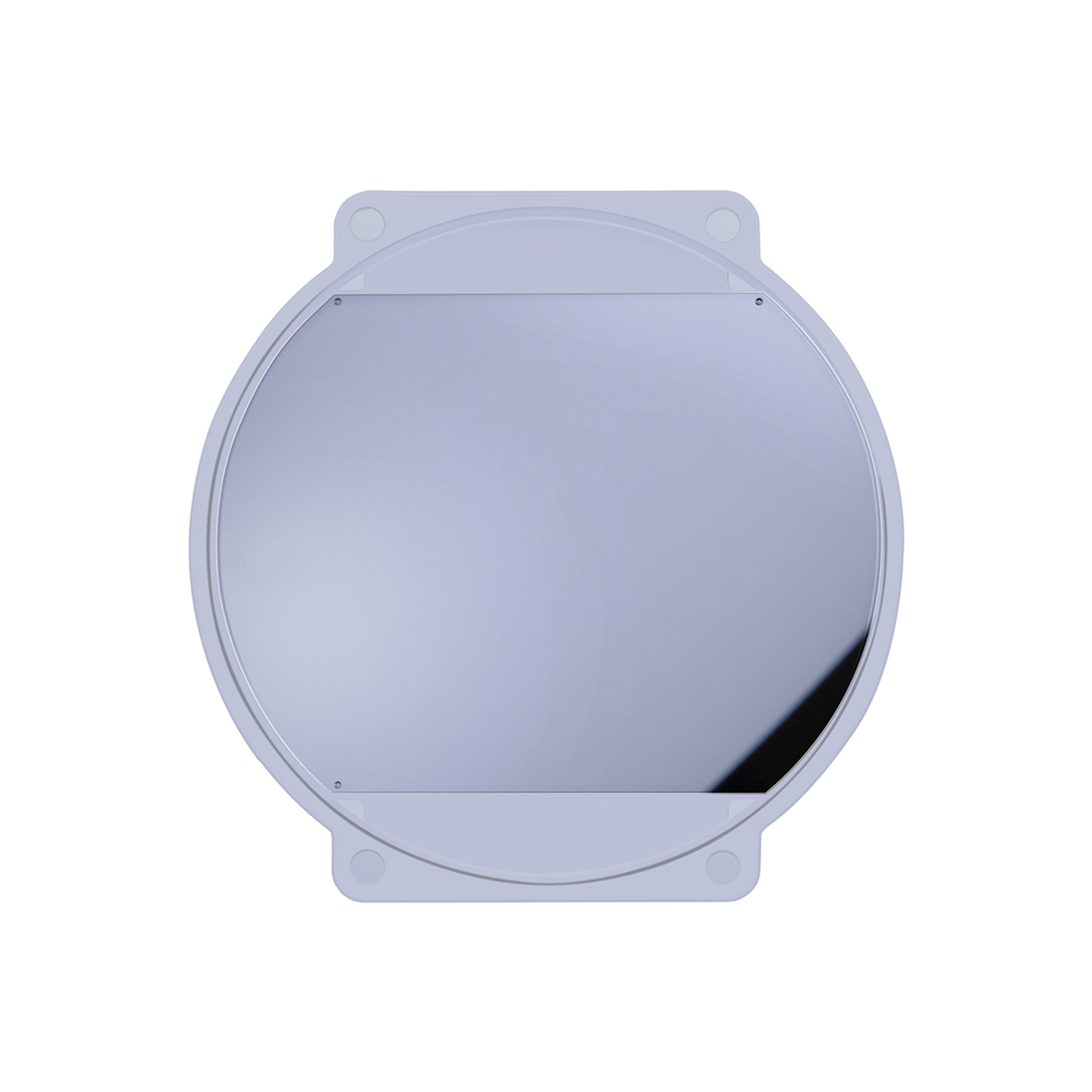

Nylon Polarized Lens Gray Green Mirror Coated

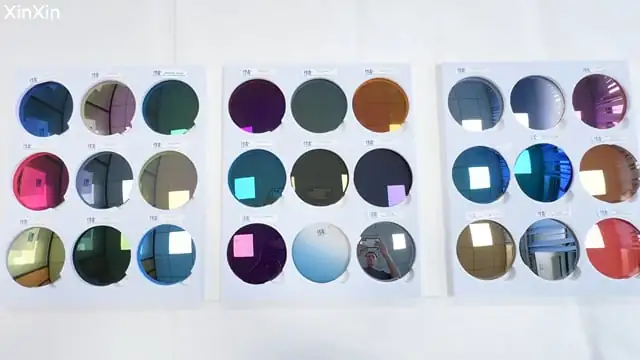

Click to play and view the gray-green polarized mirror nylon lens finish and optical clarity in motion.
Technical Specifications
| Material | Optical Grade Nylon + Japan-Imported PVA Film |
| Color | Dark Gray Base + Gray Green Mirror Coated (REVO) |
| Coating Method | 12–14 Layer Vacuum Ion Sputtering |
| Polarization Efficiency | ≥99% |
| VLT / Category | 8–18% / CAT 3 |
| UV Protection | UV400 (≤400nm, ≥99% blocking) |
| Abbe Value | 52 |
| Specific Gravity | 1.01 g/cm³ |
| Optical Accuracy | Prism ≤0.12 Δ / Cylinder ≤0.09 D |
| Base Curve | 2C / 4C / 6C / 8C Available |
| Center Thickness | 1.5mm / 1.7mm / 1.8mm / 2.0mm (±0.05mm) |
| Diameter | 71mm / 75mm / 80mm (custom available) |
| Impact Test | FDA 21 CFR 801.410 Pass |
| Certifications | CE / FDA / GB / ANSI / EN / AS/NZS |
| MOQ | 300 Pairs/Specification |
| Origin | Shenzhen, China |
| Logo | Laser engraving, Screen printing, UV printing, Decal, Embedded logo |
Production-Ready Integration
Everything you need to source with confidence
- Acetate Frames — Highly Recommended. Excellent chemical resistance against acetate plasticizers helps prevent stress cracking during fitting; the gray-green REVO coating remains anchored under high rim tension.
- Rimless / Drill-mount — The nylon substrate's tensile strength supports CNC drilling and slotting while helping reduce edge chipping or coating delamination.
- Titanium / Carbon Fiber / Metal / TR90 Frames — Lightweight, corrosion-resistant compatibility makes this lens a strong fit for premium sport and marine eyewear designs.
- Eco-friendly upgrade to Bio-based Nylon (castor oil derived) available for luxury ESG compliance
- Exclusive REVO mirror color development, including custom gray-green reflection targets
- B-AR (Back-Surface AR) coating recommended to reduce rear ghost reflections
- Coating upgrades: Anti-Seawater / Hydrophobic / Oleophobic / Anti-static / Anti-fog
- Simple Packaging: PE bag + white box; Premium Packaging: individual color box + cloth bag; custom brand-logo packaging available
- MOQ: 300 Pairs/Specification
- Sample Lead Time: 7–10 working days
- Bulk Lead Time: 15–20 working days (subject to quantity)
- Custom Base Curve / Color: 300 Pairs minimum
- Deep Custom: 500 Pairs minimum
- Custom Options: OEM/ODM, bio-based nylon option, custom REVO colors, B-AR, logo, and packaging
- Reports: Light Transmittance, UV Blocking, Impact Resistance, Color Consistency (Delta E), Salt Spray, and Polarization Efficiency Test Reports
Features & Applications
Technical Features
- Neutral Gray-Green Vision: The dark-gray base moderates brightness while the gray-green REVO face gives outdoor and marine collections a composed technical finish.
- Polarized Glare Management: A laminated Japanese PVA film suppresses reflected light from water, wet roads, glass, and vessel surfaces for more comfortable forward vision.
- Curve-Friendly Nylon: Low-density PA-12 construction works across 2C to 8C forms, giving designers a lightweight route into wrapped sport and sailing frames.
- Mirror-Layer Security: Ion sputtering, hard-coat preparation, and Grade 0 adhesion testing help the mirror stack withstand edging, grooving, and controlled drill mounting.
- Repeatable Color Control: Instrument-led Delta E monitoring provides a stable gray-green reflection target for matched pairs, replenishment orders, and private-label rollouts.
- Export-Ready Specification: UV400 protection, impact-test support, configurable diameters, and polarization-efficiency reporting give buying teams a practical global sourcing baseline.
Perfect For
- Premium Eyewear Brands
- Independent Eyewear Designers
- Private Label Distributors
- Lens Distributors
- Optical Retailers
- Water Sports & Marine Retailers
Overview
Gray-green mirror polarization suits sunwear programs that need a quiet, professional color story alongside serious glare control. A neutral gray nylon base supports familiar color recognition, while the green reflective layer gives sailing, fishing, and travel frames a distinct finish in strong daylight.
Xinxin can align the mirror target, transmission range, base curve, backside AR, and surface package to an approved sample. That controlled workflow gives product teams a clear path from visual reference to repeatable OEM production.
Lens Category
| Category | VLT (%) | Usage Environment |
|---|---|---|
| CAT 0 | 80% - 100% | Indoor or overcast low-light conditions |
| CAT 1 | 43% - 80% | Low-light outdoor, overcast |
| CAT 2 | 18% - 43% | Medium light, daily outdoor |
| CAT 3 | 8% - 18% | Strong outdoor light, sunny |
| CAT 4 | 3% - 8% | Extreme light, e.g., skiing, mountaineering |
12-14 Layer Ion-Assisted E-Beam Evaporation (PVD) — How Xinxin Crafts REVO Mirror Lenses
Click to play and see how our gray-green nylon polarized mirror coated lens is manufactured using nano-scale ion-assisted e-beam evaporation in a Class 10,000 cleanroom.
International Quality Standards
Active certifications — verified & compliant
.webp)
Ready to Elevate Your Sunglass and Goggles Lenses?
Partner with XinXin Optics for premium custom lens manufacturing. We offer competitive MOQs and industry-leading lead times, specifically tailored for global brands.
Start Your Project
Submit your project information, and our engineering team will deliver a detailed preliminary review within 24 hours.
Thank You!
Your inquiry has been sent successfully. We will contact you within 24 hours.
Or contact us directly:
Related Series
View All Collections

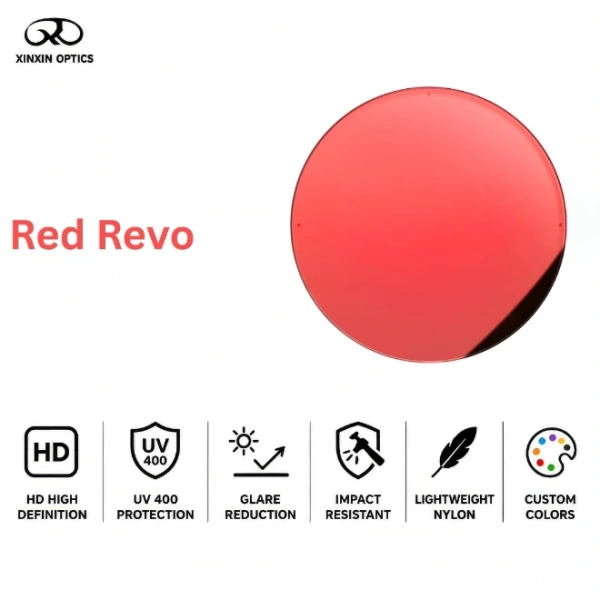

Nylon Sunglasses Lens Red Mirror Coated
